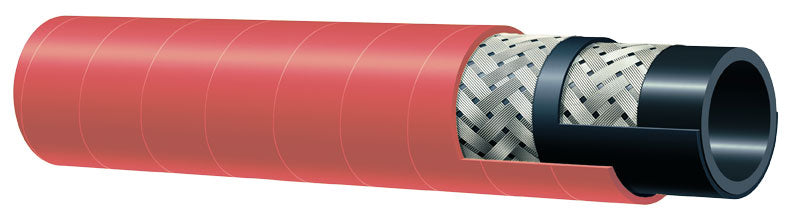

T341AH125X50 Alfagomma by Kuriyama | T341AH Series | Saturated & Superheated Steam Hose | 1-1/4" ID | 1.81" OD | 270 PSI | Red | 50ft Length
Kuriyama of America Inc.
Alfagomma | T341AH / T341AA Series | 270 PSI Chlorobutyl Braided Steam Hose
For the transfer of saturated and superheated steam up to 270 PSI and max 410°F (+210°C) in shipyards, chemical plants and industrial applications.
Package Quantity: 50 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $586.33 |
| 15–29 | $530.19 |
| 30+ | $467.81 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
270
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | The transfer of saturated and superheated steam up to 270 PSI and max 410°F (+210°C) in shipyards, chemical plants and industrial applications. Proper draining of steam hose after each use will increase service life. T341AA/AH 1 1/4", 1 1/2" & 2" not suitable for "Ship to Shore" service. Not recommended for washdown applications where detergent or oils are present. Not for steam cleaner use. |
||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black extruded CIIR - heat-resistant. |
| Reinforcement: | High tensile steel wire braids (1/2" ID - 1 wire braid, 3/4" and higher ID's - 2 wire braids). | Cover: | Red or black EPDM - heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting |
| Service Temperature Range: | Saturated and Superheated Steam. Constant Operation: -40°F (-40 °C) to +410°F (+210°C) Intermittent to +450°F (+232°C) | Coupling Suggestions: | Steel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clamps. Universal quick-acting couplings should not be used with steam hose. |
| Branding: | ALFAGOMMA - ITALY T341 18 BAR (270 PSI) STEAM - DRAIN AFTER USE - QTR/YEAR (embossed) | ||
| Red Cover | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number 50ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Min. Bend Radius at 68°F |
Weight | |||
| (in) | (mm) | (in) | (mm) | PSI | (in) | lbs/ft | |||
| T341AH050X50 | T341AH050X100 | 1/2" | 13mm | 0.91" | 23mm | 270 PSI | 5" | 0.29 lbs/ft | |
| T341AH075X50 | T341AH075X100 | 3/4" | 19mm | 1.22" | 31mm | 270 PSI | 7-1/2" | 0.53 lbs/ft | |
| T341AH100X50 | T341AH100X100 | 1" | 25mm | 1.50" | 38mm | 270 PSI | 10" | 0.62 lbs/ft | |
| T341AH125X50 | T341AH125X100 | 1-1/4" | 32mm | 1.81" | 46mm | 270 PSI | 12-1/2" | 0.89 lbs/ft | |
| T341AH150X50 | T341AH150X100 | 1-1/2" | 38mm | 2.05" | 52mm | 270 PSI | 15" | 0.97 lbs/ft | |
| T341AH200X50 | T341AH200X100 | 2" | 51mm | 2.64" | 67mm | 270 PSI | 20" | 1.44 lbs/ft | |
| Black Cover | |||||||||
| Part Number 50ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Min. Bend Radius at 68°F |
Weight | |||
| (in) | (mm) | (in) | (mm) | PSI | (in) | lbs/ft | |||
| T341AA050X50 | T341AA050X100 | 1/2" | 13mm | 0.91" | 23mm | 270 PSI | 5" | 0.29 lbs/ft | |
| T341AA075X50 | T341AA075X100 | 3/4" | 19mm | 1.22" | 31mm | 270 PSI | 7-1/2" | 0.53 lbs/ft | |
| T341AA100X50 | T341AA100X100 | 1" | 25mm | 1.50" | 38mm | 270 PSI | 10" | 0.62 lbs/ft | |
| T341AA125X50 | T341AA125X100 | 1-1/4" | 32mm | 1.81" | 46mm | 270 PSI | 12-1/2" | 0.89 lbs/ft | |
| T341AA150X50 | T341AA150X100 | 1-1/2" | 38mm | 2.05" | 52mm | 270 PSI | 15" | 0.97 lbs/ft | |
| T341AA200X50 | T341AA200X100 | 2" | 51mm | 2.64" | 67mm | 270 PSI | 20" | 1.44 lbs/ft | |
