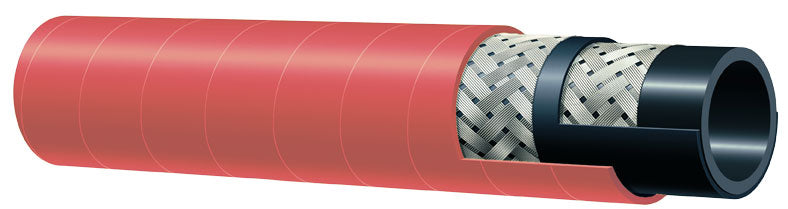

T340AH100X50 Alfagomma by Kuriyama | T340AH Series | Steam Hose | 1" ID | 1.50" OD | 270 PSI | Red | 50ft Length
Kuriyama of America Inc.
Alfagomma | T340AH / T340AA Series | 270 PSI EPDM Braided Steam Hose
For the transfer of saturated steam up to 270 PSI and 410°F (+210°C).
Package Quantity: 50 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $345.71 |
| 15–29 | $312.61 |
| 30+ | $275.84 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
270
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | The transfer of saturated steam up to 270 PSI and 410°F (+210°C). Use with superheated steam will shorten hose life. Proper draining of steam hose after each use will increase service life. Not recommended for washdown applications where detergent or oils are present. Not for steam cleaner use. |
||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black extruded EPDM - heat-resistant. |
| Reinforcement: | High tensile steel wire braids (1/2" ID - 1 wire braid, 3/4" and higher ID's - 2 wire braids). | Cover: | Red or black EPDM - heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting. |
| Service Temperature Range: | Saturated Steam. Constant Operation: -40°F (-40°C) to +410°F (+210°C) Intermittent to +450°F (+232°C) | Coupling Suggestions: | Steel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clamps. |
| Branding: | ALFAGOMMA - ITALY T340 18 BAR (270 PSI) STEAM - DRAIN AFTER USE - QTR/YEAR (embossed) | ||
| Red Cover | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number 50ft |
Part Number 100ft |
Part Number 200ft |
ID | OD | Max Rec. Working Pressure |
Min. Bend Radius at 68°F |
Weight | ||
| (in) | (mm) | (in) | (mm) | PSI | (in) | lbs/ft | |||
| T340AH050X50 | T340AH050X100 | - | 1/2" | 13mm | 0.91" | 23mm | 270 PSI | 5" | 0.28 lbs/ft |
| T340AH075X50 | T340AH075X100 | T340AH075X200 | 3/4" | 19mm | 1.22" | 31mm | 270 PSI | 7-1/2" | 0.52 lbs/ft |
| T340AH100X50 | T340AH100X100 | - | 1" | 25mm | 1.50" | 38mm | 270 PSI | 10" | 0.60 lbs/ft |
| Black Cover | |||||||||
| Part Number 50ft |
Part Number 100ft |
Part Number 200ft |
ID | OD | Max Rec. Working Pressure |
Min. Bend Radius at 68°F |
Weight | ||
| (in) | (mm) | (in) | (mm) | PSI | (in) | lbs/ft | |||
| T340AA050X50 | T340AA050X100 | - | 1/2" | 13mm | 0.91" | 23mm | 270 PSI | 5" | 0.28 lbs/ft |
| T340AA075X50 | T340AA075X100 | T340AA075X200 | 3/4" | 19mm | 1.22" | 31mm | 270 PSI | 7-1/2" | 0.52 lbs/ft |
| T340AA100X50 | T340AA100X100 | - | 1" | 25mm | 1.50" | 38mm | 270 PSI | 10" | 0.60 lbs/ft |
| T340AA200X50 | T340AA200X100 | - | 2" | 51mm | 2.64" | 67mm | 270 PSI | 20" | 1.38 lbs/ft |
| T340AA300X50 | T340AA300X100 | - | 3" | 76mm | 3.70" | 94mm | 270 PSI | 30" | 2.50 lbs/ft |
