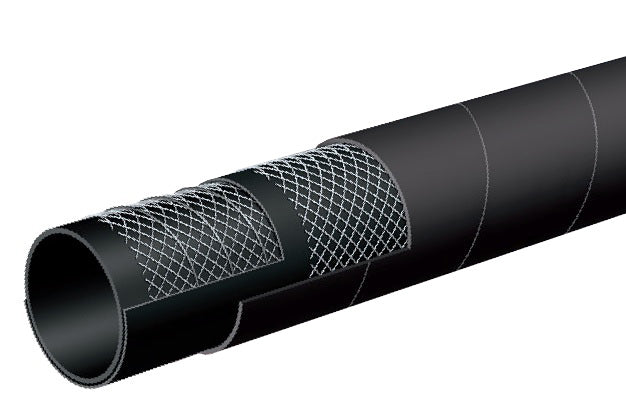

T202AA600X25 Alfagomma by Kuriyama | T202AA Evolution Series | General Purpose Water Suction & Discharge Hose | 6" ID | 6.61" OD | 150 PSI | Black | 25ft Length
Kuriyama of America Inc.
Alfagomma | T202AA Evolution Series | 150 PSI General Purpose Water Suction & Discharge Hose
A durable hose engineered for efficient water suction and delivery. Perfect for irrigation systems, construction sites, and agricultural use - capable of handling fertilizers and mild acid solutions with ease.
Package Quantity: 25 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $899.24 |
| 15–29 | $813.14 |
| 30+ | $717.48 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Water suction and delivery hose. Suction and discharge of non-corrosive liquids for irrigation, construction, fertilizers and lasso acid solutions. | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | - | Tube: | Black EPDM. |
| Reinforcement: | : Spiraled high tensile textile cords with flexible steel helix wire. | Cover: | Black EPDM - abrasion and ozone resistant. |
| Service Temperature Range: | -40°F (-40°C) to +212°F (+100°C) | Coupling Suggestions: | Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps. |
| Branding: | ALFAGOMMA - ITALY - 202 EVOLUTION 10 BAR (150 PSI) GENERAL PURPOSE EPDM (in green letters) | ||
| Part Number 20ft |
Part Number 25ft |
Part Number 50ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | inHg | (in) | lbs/ft | ||||
| - | - | - | T202AA100X100 | 1" | 25mm | 1.42" | 36mm | 150 psi | 30" | 2 | 0.48 lbs/ft |
| - | - | - | T202AA125X100 | 1-1/4" | 32mm | 1.69" | 43mm | 150 psi | 30" | 2.5 | 0.58 lbs/ft |
| - | - | - | T202AA150X100 | 1-1/2" | 38mm | 1.93" | 49mm | 150 psi | 30" | 3 | 0.68 lbs/ft |
| - | - | - | T202AA200X100 | 2" | 51mm | 2.44" | 62mm | 150 psi | 30" | 4 | 0.88 lbs/ft |
| - | - | - | T202AA250X100 | 2-1/2" | 63mm | 2.99" | 76mm | 150 psi | 30" | 7.5 | 1.36 lbs/ft |
| - | - | - | T202AA300X100 | 3" | 76mm | 3.50" | 89mm | 150 psi | 30" | 9 | 1.61 lbs/ft |
| - | - | - | T202AA350X100 | 3-1/2" | 90mm | 4.02" | 102mm | 150 psi | 30" | 10.5 | 1.82 lbs/ft |
| - | - | - | T202AA400X100 | 4" | 102mm | 4.57" | 116mm | 150 psi | 30" | 12 | 2.22 lbs/ft |
| T202AA500X20 | - | T202AA500X50 | - | 5" | 127mm | 5.55" | 141mm | 150 psi | 25" | 18 | 3.18 lbs/ft |
| T202AA600X20 | T202AA600X25 | T202AA600X50 | T202AA600X100 | 6" | 152mm | 6.61" | 168mm | 150 psi | 25" | 24 | 3.59 lbs/ft |
| T202AA800X20 | T202AA800X25 | - | - | 8" | 203mm | 8.70" | 221mm | 150 psi | 25" | 32 | 6.64 lbs/ft |
| T202AA1000X20 | - | - | - | 10" | 254mm | 10.71" | 272mm | 150 psi | 25" | 50 | 9.09 lbs/ft |
| T202AA1200X20 | - | - | - | 12" | 305mm | 12.87" | 327mm | 150 psi | 25" | 61 | 12.54 lbs/ft |
