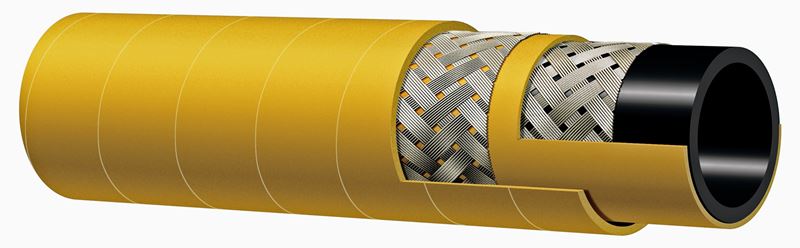

T146AK075X50 Alfagomma by Kuriyama | T146AK Series | MSHA Mine Spray Hose | 3/4" ID | 1.10" OD | 1000 PSI | Yellow | 50ft Length
Kuriyama of America Inc.
Alfagomma | T146AK Series | Braided MSHA Mine Spray Hose
For underground mine water spray for dust control. Also usable on continuous mining machinery.
Package Quantity: 50 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $227.77 |
| 20–59 | $205.96 |
| 60+ | $181.73 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
1000
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | Underground mine water spray for dust control. Also usable on continuous mining machinery. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black Extruded SBR/NBR blend - oil mist resistant. |
| Reinforcement: | High tensile steel wire braids. | Cover: | Yellow SBR/NBR blend - abrasion, ozone, hydrocarbon and fire resistant - pin pricked. |
| Service Temperature Range: | -22°F (-30°C) to +200°F (+90°C) | Coupling Suggestions: | Permanently attached crimped hydraulic couplings. |
| Branding: | ALFAGOMMA - ITALY - 70 BAR (1000 PSI) MINE SPRAY MSHA IC - 152/6 (embossed) | ||
| Part Number 50ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | (in) | lbs/ft | ||
| T146AK075X50 | T146AK075X100 | 3/4" | 19mm | 1.10" | 28mm | 1000 PSI | 3-3/4" | 0.45 lbs/ft |
| T146AK100X50 | T146AK100X100 | 1" | 25mm | 1.34" | 34mm | 1000 PSI | 5" | 0.58 lbs/ft |
| T146AK125X50 | T146AK125X100 | 1-1/4" | 32mm | 1.61" | 41mm | 1000 PSI | 6-1/4" | 0.75 lbs/ft |
| T146AK150X50 | T146AK150X100 | 1-1/2" | 38mm | 1.93" | 49mm | 1000 PSI | 7-1/2" | 1.08 lbs/ft |
| T146AK200X50 | T146AK200X100 | 2" | 51mm | 2.48" | 63mm | 1000 PSI | 10" | 1.47 lbs/ft |
