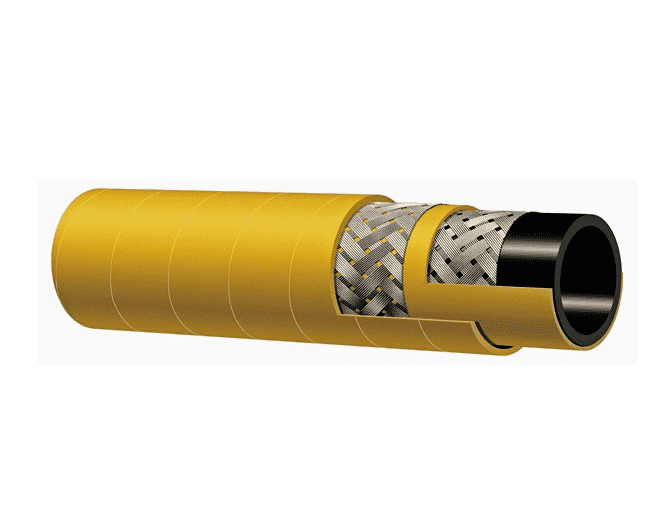

T142AK200X100 Alfagomma by Kuriyama | High Temperature | Oil Resistant Braided Air Hose | Yellow | 2" ID | 2.52" OD | 600 PSI | Reinforced Steel | 100ft Length
Kuriyama Alfagomma® T142AK Series 600 PSI High Temperature Oil Resistant Steel Braided Reinforced Air Hose - Yellow
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,848.21 |
| 8–14 | $1,769.56 |
| 15+ | $1,572.94 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
600
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | High pressure air for mines and quarries. Designed for long lasting service and maximum safety in heavy duty applications where resistance to oil is required. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Black Extruded NBR (RMA Class A) - oil mist resistant. |
| Reinforcement: | High tensile steel wire braids. | Cover: | Yellow SBR/NBR - abrasion, ozone, hydrocarbon and flame resistant - pin pricked. |
| Temperature Range: | -40 deg. F (-40 deg. C) to 242 deg. F (+120 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | N/A |
| Other Features: | |||
|
|||
| Part Number | Nominal ID | Nominal OD | Max Rec. Working Pressure | Min. Bend Radius at 68 deg. F | Standard Length | Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (ft.) | (lbs./ft.) | |
| T142AK200X100 | 2" | 51mm | 2.52" | 64mm | 600 PSI | 10" | 100ft | 1.53 lbs |
| T142AK200X50 | 2" | 51mm | 2.52" | 64mm | 600 PSI | 10" | 50ft | 1.53 lbs |
| T142AK250X100 | 2-1/2" | 63mm | 3.03" | 77mm | 450 PSI | 12-1/2" | 100ft | 1.93 lbs |
| T142AK300X100 | 3" | 76mm | 3.54" | 90mm | 450 PSI | 15" | 100ft | 2.38 lbs |
| T142AK300X50 | 3" | 76mm | 3.54" | 90mm | 450 PSI | 15" | 50ft | 2.38 lbs |
