T04-5X4 by Couplamatic | T Series Coupling | 5/16" Hose ID x 1/4-18 Thread Size Male Swivel NPTF | Straight | Trivalent Zinc Plating | Pack of 10

T04-5X4 by Couplamatic | T Series Coupling | 5/16" Hose ID x 1/4-18 Thread Size Male Swivel NPTF | Straight | Trivalent Zinc Plating | Pack of 10

Sale price$70.56

Couplamatic Systems Inc.
T Series - NPTF - Male Swivel

Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
10–39 $66.33
40–79 $59.98
80+ $52.92
Discounts applied in cart/checkout.

Product Data:

Series:
  • T Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male NPTF
  • 5/16in Hose Barb
Description:
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

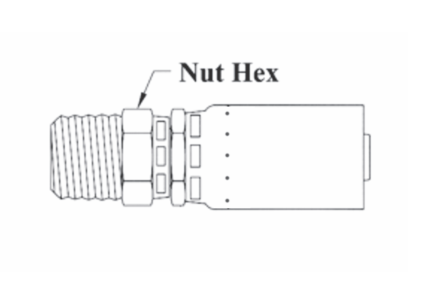

Part Number Hose ID Pipe Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Weatherhead E
T04-4X4 1/4" 1/4" 1/4-18 9/16" 5/8" 04E-J04
T04-5X4 5/16" 1/4" 1/4-18 11/16" 3/4" 05E-J04
T04-6X6 3/8" 3/8" 3/8-18 11/16" 3/4" 06E-J06
T04-8X8 1/2" 1/2" 1/2-14 3/4" 7/8" 08E-J08

Swivel for installation purposes only. Leakage may occur at low pressure.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
