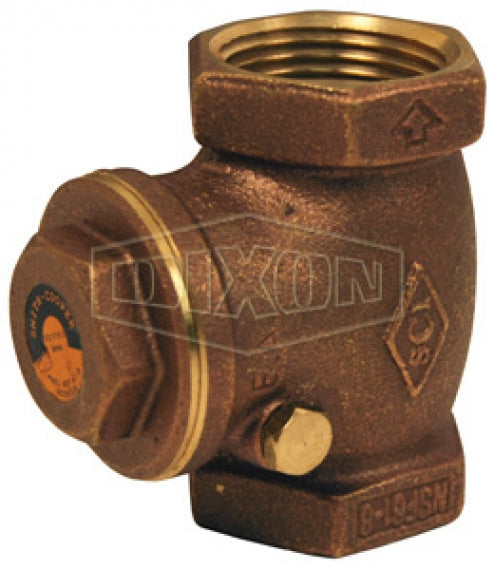

SWCV75 by Dixon Valve | Swing Check Valve | 3/4" Female NPT x 3/4" Female NPT | Brass
Dixon

SWCV75 by Dixon Valve | Swing Check Valve | 3/4" Female NPT x 3/4" Female NPT | Brass

Sale price$28.57

Dixon Valve & Coupling
Swing Check Valve | Brass

For use in plumbing and liquid piping systems to prevent back flow.

For horizontal or vertical use.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Female NPT
  • 3/4in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Full flow performance with a minimum of turbulence or pressure loss.
  • A positive seating disc allows flow only in one direction and a screw-in cap provides easy access for periodic cleaning.
Materials:
  • Brass disc.
Specifications:
  • Pressure rating: 200 PSI WOG
  • Temperature range: -20° to 150°F (-29°C to 66°C)
Part Number Female NPT x Female NPT
SWCV50 1/2" x 1/2"
SWCV75 3/4" x 3/4"
SWCV100 1" x 1"
SWCV125 1-1/4" x 1-1/4"
SWCV150 1-1/2" x 1-1/2"
SWCV200 2" x 2"
SWCV300 3" x 3"
SWCV400 4" x 4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
