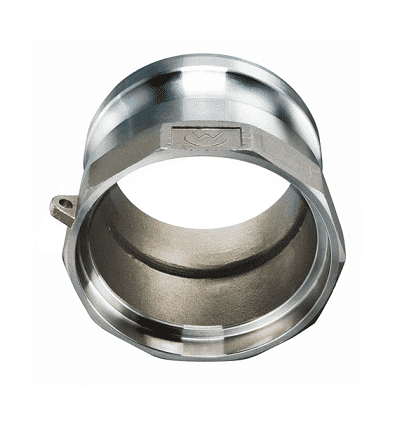

SW-SSA200 by Kuriyama | Quick-Acting Welding Coupling | Part A | 2" Male Adapter | 316 Stainless Steel

SW-SSA200 by Kuriyama | Quick-Acting Welding Coupling | Part A | 2" Male Adapter | 316 Stainless Steel

Sale price$44.05

Kuriyama Couplings™ - Quick-Acting Weld Couplings - Part A - Male Adapter x Socket Weld - 316 Stainless Steel

Buy More, Save More!
Quantity Price Each
10–39 $41.41
40–79 $37.44
80+ $33.04
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Other

Ends Configuration:
  • 2in Male Cam & Groove
  • 2in Weld End
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • SW Items are Designed for Socket Weld to Schedule 40 Pipe
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for material and interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 316 stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Zinc-plated carbon steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets
Part Number Size Weight (Lbs.)
SW-SSA150 1-1/2" x 1-1/2" 0.71 lbs
SW-SSA200 2" x 2" 1.37 lbs
SW-SSA250 2-1/2" x 2-1/2" 1.38 lbs
SW-SSA300 3" x 3" 1.87 lbs
SW-SSA400 4" x 4" 3.95 lbs
SW-SSA500 5" x 5" 4.46 lbs
SW-SSA600 6" x 6" 6.16 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
