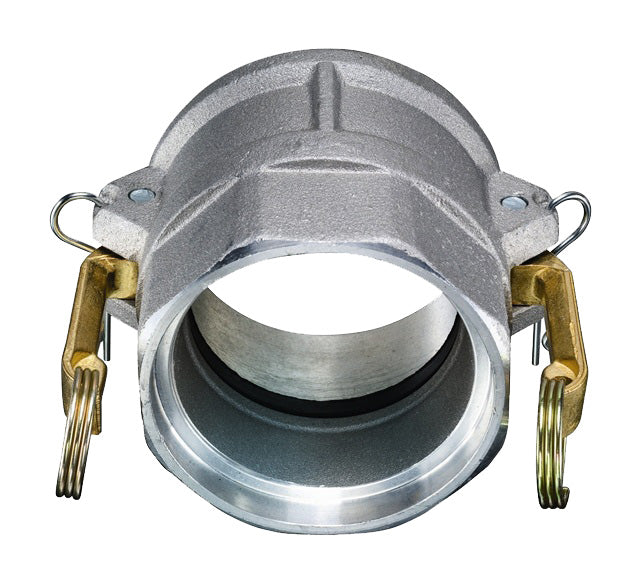

SW-ALD200 by Kuriyama | SW-ALD Series | Part D | Cam & Groove Adapter | 2" Coupler x 2" Socket Weld End | Aluminum
Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SW-ALD Series | Part D | Coupler x Socket Weld End | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $24.85 |
| 40–79 | $22.47 |
| 80+ | $19.83 |
Discounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- Supplied with forged brass handles which results in less wear on connecting parts.
- Socket weld items are designed for use with schedule 40 pipe.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
- Zinc plated carbon steel handle pins, pull rings and safety clips.
- Buna-N gasket included.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|
| SW-ALD150 | 1-1/2" | 250 PSI | B26 Grade 713 | 0.81 lbs |
| SW-ALD200 | 2" | 250 PSI | B26 Grade 713 | 0.99 lbs |
| SW-ALD250 | 2-1/2" | 250 PSI | B26 Grade 713 | 1.27 lbs |
| SW-ALD300 | 3" | 250 PSI | B26 Grade 713 | 1.69 lbs |
| SW-ALD400 | 4" | 150 PSI | B26 Grade 713 | 2.91 lbs |
| SW-ALD500 | 5" | 150 PSI | B26 Grade 713 | 4.56 lbs |
| SW-ALD600 | 6" | 150 PSI | B26 Grade 713 | 5.28 lbs |
Product Data:
Series:
MAWP:
250
Shape:
Straight
Cam & Groove Type:
Type D
Ends Configuration:
Material(s):
Seal Material(s):
