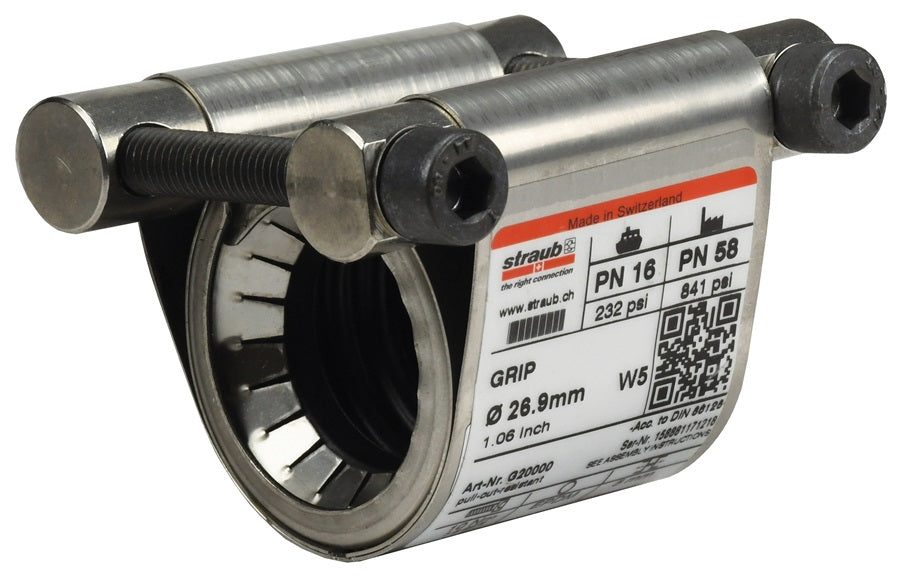

STR20000 by Dixon Valve | Straub Grip-L Axial Restraint Pipe Coupling | 3/4" Size | Pipe OD Range: 1.04" to 1.08" | 316 Ti Stainless Steel

STR20000 by Dixon Valve | Straub Grip-L Axial Restraint Pipe Coupling | 3/4" Size | Pipe OD Range: 1.04" to 1.08" | 316 Ti Stainless Steel

Sale price$175.11

Dixon Valve
Straub Grip-L Axial Restraint Pipe Coupling

Joins like or dissimilar pipe materials: steel, galvanized, painted, stainless steel, thin-wall stainless steel, PVC, copper.

Suitable for pipes within the lower pressure range. Applications include, but are not limited to: ship building, water and waste water treatment plants, and industrial process pipe work.
Quantity Price Each
15–29 $166.35
30–59 $157.60
60+ $140.09
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Straub
Series:
  • Grip-L
Shape:

Straight
Features:
  • Accommodates up to 5° of pipe misalignment.
  • Vary gap between pipe ends.
  • Absorbs vibration, water hammer and sound.
  • Special patented grip ring for superior holding power on hard-surfaced pipes.
  • 5 year limited warranty.
  • Reusable.
Construction:
  • Highest quality 316 Ti stainless steel construction.
  • EPDM sealing sleeve standard, temperature range of -4°F to 176°F.
  • Casing: AISI 316 Ti.
  • Screws: AISI 316 L.
  • Bolts: AISI 316 Ti (Coupling has 1 bolt).
Installation:
  • Requires no special tools or pipe-end preparation; only a torque wrench is required for a secure and safe pipe connection that seldom needs retightening.
Safety Notes:
  • All Straub couplings require the correct use of a torque wrench for a safe and proper installation.
  • Straub couplings must be torqued to the specified value as printed on each individual coupling. Failure to do so can result in serious injury or death.
  • Not for steam or refrigerant service.
Specifications:
  • Built to ASTM 1476, Type C, Class 2 specifications.
  • American Bureau of Shipping (ABS) up to 232 PSI on 3/4" - 5"; 188 PSI on 6"; 145 PSI on 8".
  • National Sanitation Foundation.
316 Ti Stainless Steel
Part Number		 Size Pipe O.D. Range Working
Pressure
PSI		 Coupling Dimensions Assembled
Dimensions		 Maximum Distance
Between Pipe End
R
Actual Min to Max B C DV
STR20000 3/4" 1.05" 1.04" to 1.08" 841 PSI 1.8" 0.7" 1.7" 0.2"
STR20100 1" 1.30" 1.31" to 1.35" 565 PSI 1.8" 0.7" 2.0" 0.2"
STR20300 1-1/2" 1.90" 1.88" to 1.92" 406 PSI 1.8" 0.7" 2.5" 0.2"
STR20450 2" 2.37" 2.35" to 2.40" 333 PSI 2.5" 0.9" 3.03" 0.2"
STR20500 2-1/2" 2.88" 2.85" to 2.90" 304 PSI 2.5" 0.9" 3.5" 0.2"
STR20650 3" 3.50" 3.46" to 3.54" 377 PSI 3.9" 1.5" 4.4" 0.2"
STR20900 4" 4.50" 4.46" to 4.54" 319 PSI 3.9" 1.5" 5.5" 0.4"
