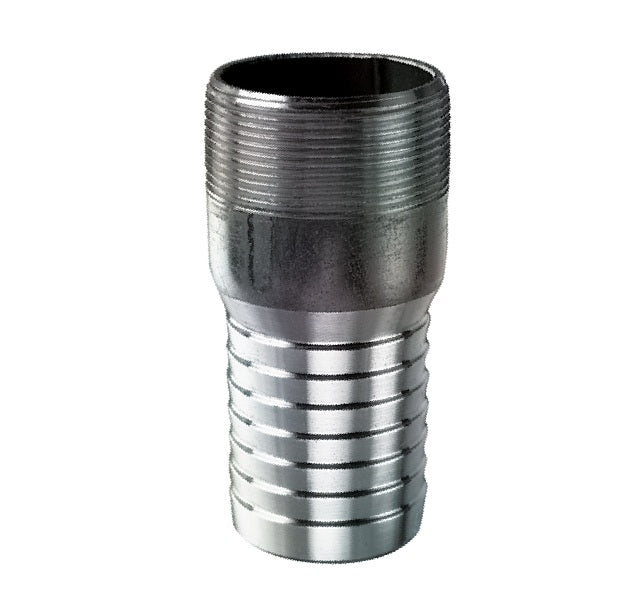

STN125 by Kuriyama | STN Series | Combination Hose Nipple | 1-1/4" Male NPT x 1-1/4" Hose Barb | Plain Steel
Minimum Order Quantity: 5 Units
Buy more, save moreDiscounts applied in cart/checkout.
What are the Features?
- Versatile hose connectors designed to connect hose and pipes of the same thread size.
- Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
- Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.
What are the Materials?
- Plain Steel - Complies with ASTM A53 B welded pipe.
| Part Number | Size (in) |
PSI Rating at 70°F |
Weight Each (lbs) |
|---|---|---|---|
| STN050 | 1/2" | 125 PSI | 0.14 lbs |
| STN075 | 3/4" | 125 PSI | 0.22 lbs |
| STN100 | 1" | 125 PSI | 0.32 lbs |
| STN125 | 1-1/4" | 125 PSI | 0.56 lbs |
| STN150 | 1-1/2" | 125 PSI | 0.72 lbs |
| STN200 | 2" | 75 PSI | 1.10 lbs |
| STN250 | 2-1/2" | 75 PSI | 1.74 lbs |
| STN300 | 3" | 75 PSI | 2.18 lbs |
| STN400 | 4" | 75 PSI | 3.22 lbs |
| STN500 | 5" | 75 PSI | 7.60 lbs |
| STN600 | 6" | 75 PSI | 12.24 lbs |
Additional Product Data:
Series:
MAWP:
125
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
