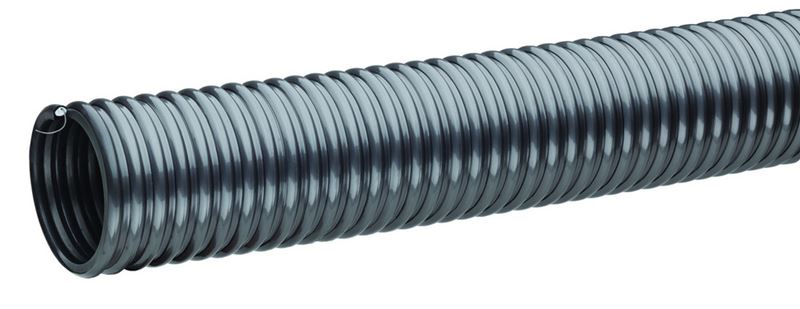

STIG300X100 Tigerflex® Silver Tiger™ by Kuriyama | STIG™ Series | Extremely Heavy-Duty Material Handling Hose | with Grounding Wire | PVC & Polyurethane | 3" ID | 3.77" OD | 100ft Length
Tigerflex® | Silver Tiger™ STIG™ Series | Extremely Heavy-Duty Material Handling Hose with Grounding Wire | PVC & Polyurethane
Designed for heavy-duty abrasive service.
Supports fly ash collection, shot blast and milling scrap recovery, and the vacuuming or transfer of rock, sand, gravel, crushed concrete, and other materials using industrial vacuum equipment and chutes.
Made in the USA.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $2,628.97 |
| 4–9 | $2,517.10 |
| 10+ | $2,237.42 |
Product Data:
45
Kuriyama Tigerflex™ STIG Series
Severe-duty polyurethane-lined hose designed for dry abrasive material handling, industrial vacuum equipment, material chutes and shot blast recovery applications.
Extra-Thick Liner
Heavy polyurethane liner supports severe abrasion
Grounding Wire
Helps dissipate static charge when properly grounded
Flexible Design
Convoluted outer cover increases hose flexibility
Oil Resistant
Resists most animal- and petroleum-based oils
1
What is this product used for?
- Fly ash collection
- Industrial vacuum equipment
- Material chutes
- Heavy-duty abrasive material handling
- Milling machine scrap recovery
- Rock, gravel, sand and crushed concrete vacuuming
- Shot blast recovery
2
What are the key specifications?
Extra-thick polyurethane liner
Rigid PVC helix and grounding wire
PVC
-4°F (-20°C) to +150°F (+65°C)
Phthalate free and RoHS
Made in the USA
3
What are the main product features?
- Extra-Thick Abrasion-Resistant Polyurethane Liner — The thickest polyurethane liner available, designed for dry applications where severe abrasion is a factor. It can provide longer hose life and lower operating costs compared with rubber or PVC hoses.
- Grounding Wire — Multi-strand wire helps reduce static electricity buildup and support smooth material flow. The wire is embedded within the rigid helix to help prevent contamination of transferred materials.
- Convoluted Outer Cover — Provides increased hose flexibility for demanding applications.
- Oil-Resistant Polyurethane Liner — Resists most animal- and petroleum-based oils.
- Made in the USA — Manufactured in the United States.
4
Which sizes and lengths are available?
| Part Number | Inside Diameter | Outside Diameter | Working Pressure | Vacuum Rating | Minimum Bending Radius | Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F | at 104°F | at 68°F | at 104°F | at 68°F | ft | lbs/ft | |
| STIG250X50 | 2-1/2" | 63.5 | 3.04" | 77.2 | 45 PSI | 22 PSI | Full | 28 in Hg | 7" | 50 | 0.92 |
| STIG250X100 | 2-1/2" | 63.5 | 3.04" | 77.2 | 45 PSI | 22 PSI | Full | 28 in Hg | 7" | 100 | 0.92 |
| STIG300X50 | 3" | 76.2 | 3.77" | 95.8 | 45 PSI | 22 PSI | Full | 28 in Hg | 8" | 50 | 1.50 |
| STIG300X100 | 3" | 76.2 | 3.77" | 95.8 | 45 PSI | 22 PSI | Full | 28 in Hg | 8" | 100 | 1.50 |
| STIG400X60 | 4" | 101.6 | 4.86" | 123.5 | 40 PSI | 20 PSI | Full | 28 in Hg | 12" | 60 | 2.32 |
| STIG400X100 | 4" | 101.6 | 4.86" | 123.5 | 40 PSI | 20 PSI | Full | 28 in Hg | 12" | 100 | 2.32 |
| STIG500X60 | 5" | 127.0 | 5.86" | 148.8 | 35 PSI | 18 PSI | Full | 28 in Hg | 16" | 60 | 3.43 |
| STIG600X100 | 6" | 153.4 | 7.18" | 182.4 | 35 PSI | 18 PSI | Full | 28 in Hg | 20" | 100 | 4.54 |
| STIG800X50 | 8" | 204.8 | 9.49" | 241.0 | 35 PSI | 18 PSI | 28 in Hg | 25 in Hg | 25" | 50 | 7.53 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide
Review the manufacturer specifications guide for additional compliance, construction and application information.
How is this product sold?
Available in 50-, 60- and 100-foot lengths, depending on hose size.
