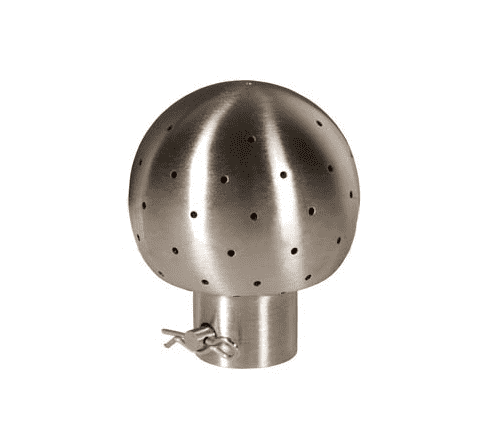

STC-180B-R100 Dixon Valve 1" 316L Stainless Steel Sanitary Stationary Spray Ball - 180 deg. Bottom Spray Pattern
Dixon Sanitary Fittings
Sanitary Stationary Spray Ball
Typically used in food and beverage industries for cleaning storage tanks.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $85.02 |
| 20–59 | $76.88 |
| 60+ | $67.84 |
Discounts applied in cart/checkout.
Product Data:
| Features: | |||
|---|---|---|---|
|
| 316L Stainless Steel Part Number |
304 Stainless Steel Part Number |
Size | Pin Length | Spray Pattern | Dimensions
|
Pin Size | Weight (Lbs.) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||||||
| STC-360-R100 | - | 1" | 1.47 | 360 Deg. | 3.04" | 2.95" | 1.005" | .975" | .445" | .226" | 0.3600 |
| STC-360-R150 | - | 1-1/2" | 1.95 | 360 Deg. | 3.54" | 2.95" | 1.505" | .975" | .445" | .226" | 0.5000 |
| 316L Stainless Steel Part Number |
304 Stainless Steel Part Number |
Size | Pin Length | Spray Pattern | Dimensions
|
Pin Size | Weight (Lbs.) | ||||
| A | B | C | D | E | |||||||
| STC-180B-R100 | STC-180B-G100 | 1" | 1.47 | 180 Deg. Bottom | 3.54" | 2.95" | 1.005" | .975" | .445" | .226" | N/A |
| STC-180B-R150 | - | 1-1/2" | 1.95 | 180 Deg. Bottom | 3.54" | 2.95" | 1.505" | .975" | .445" | .226" | N/A |
| 316L Stainless Steel Part Number |
304 Stainless Steel Part Number |
Size | Pin Length | Spray Pattern | Dimensions
|
Pin Size | Weight (Lbs.) | ||||
| A | B | C | D | E | |||||||
| STC-180T-R100 | - | 1" | 1.47 | 180 Deg. Top | 3.54" | 2.95" | 1.005" | .975" | .445" | .226" | N/A |
| STC-180T-R150 | - | 1-1/2" | 1.95 | 180 Deg. Top | 3.54" | 2.95" | 1.505" | .975" | .445" | .226" | 0.5100 |
