SSGC75-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 9/16x18 Thread Size O-Ring Face Seal | ORF Female Swivel Short Rise | Straight | 316 Stainless Steel
Buy more, save moreDiscounts applied in cart/checkout.
Grip Crimp — 316 Stainless Steel
SSGC75 Grip Crimp 316 Stainless Steel Coupling — O-Ring Face Seal (ORF), Female Swivel, Short Rise Straight, 316 Stainless Steel
SSGC75 is the O-Ring Face Seal (ORF), Female Swivel, Short Rise Straight, 316 Stainless Steel configuration of the Grip Crimp 316 Stainless Steel system, terminating braid hydraulic hose in corrosive service.
1
What are the main product features?
- Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
- Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
- Trivalent Zinc Plating
- 316 stainless steel throughout — for marine, chemical, wash-down and food service where plated steel corrodes.
- Bite to the wire — the same grip as the plated Grip Crimp couplings.
- No plating to wear through — corrosion resistance is the material, not a coating.
2
Which sizes are available?

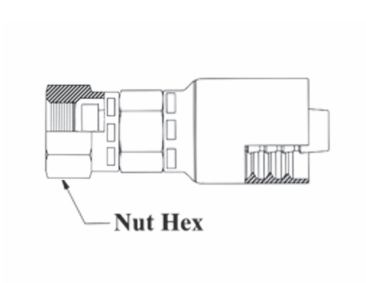

| Part Number | Hose ID | Thread Size | Tube OD | Nut Hex |
|---|---|---|---|---|
| SSGC75-4x4 | 1/4" | 9/16x18 | 1/4" | 11/16" |
| SSGC75-6x6 | 3/8" | 11/16x16 | 3/8" | 13/16" |
| SSGC75-8x8 | 1/2" | 13/16x16 | 1/2" | 15/16" |
| SSGC75-12x12 | 3/4" | 1-3/16x12 | 3/4" | 1-3/8" |
| SSGC75-16x16 | 1" | 1-7/16x12 | 1" | 1-5/8" |
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
