SSGC26-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 7/16x20 Thread Size JIC 37° Female Swivel | 90° Elbow | 316 Stainless Steel

SSGC26-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 7/16x20 Thread Size JIC 37° Female Swivel | 90° Elbow | 316 Stainless Steel

Sale price$78.42

Couplamatic Systems Inc.
Grip Crimp Series - 316 Stainless Steel- JIC 37° - 90° Female Swivel
Buy More, Save More!
Quantity Price Each
5–19 $73.71
20–59 $66.66
60+ $58.82
Discounts applied in cart/checkout.

Product Data:

Series:
  • Grip Crimp Series
Shape:

90 Degree

Ends Configuration:
  • 1/4in Female JIC
  • 1/4in Hose Barb
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

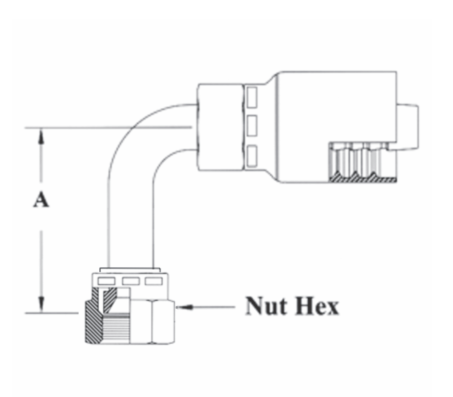

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex
SSGC26-4x4 1/4" 7/16x20 1/4" 1.05" 9/16"
SSGC26-6x6 3/8" 9/16x18 3/8" 1.15" 11/16"
SSGC26-8x8 1/2" 3/4x16 1/2" 1.40" 7/8"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
