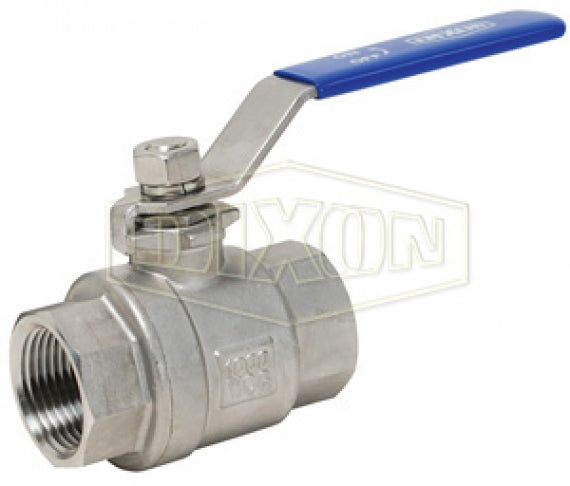

SSBV300 by Dixon Valve | Ball Valve | Full Port | 3" Female NPT x 3" Female NPT | 316 Stainless Steel

SSBV300 by Dixon Valve | Ball Valve | Full Port | 3" Female NPT x 3" Female NPT | 316 Stainless Steel

Sale price$596.86

Dixon Valve & Coupling
Ball Valve | Full Port | 316 Stainless Steel

For use with water, oil, and gas.
Buy More, Save More!
Quantity Price Each
5–14 $561.05
15–29 $507.33
30+ $447.65
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3in Female NPT
  • 3in Female NPT
  • Some Ends Match
Material(s):
  • 316 Stainless Steel
Features:
  • Blow-out proof stem design.
Materials:
  • Body: 316 Stainless Steel.
  • 316 stainless steel ball and stem.
  • RPTFE seat, joint gasket, and thrust washer.
Specifications:
  • Temperature Range:
    -20°F to 300°F (-29°C to 149°C) as long as the valve is run fully open/closed
  • Pressure Rating:
    1/4" - 2" rated to 1000 PSI WOG (CWP)
    2-1/2" - 3" rated to 800 PSI WOG (CWP)
    100 PSI saturated steam
Part Number Female NPT x Female NPT Port
SSBV25 1/4" Full
SSBV38 3/8" Full
SSBV50 1/2" Full
SSBV75 3/4" Full
SSBV100 1" Full
SSBV125 1-1/4" Full
SSBV150 1-1/2" Full
SSBV200 2" Full
SSBV250 2-1/2" Full
SSBV300 3" Full

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
