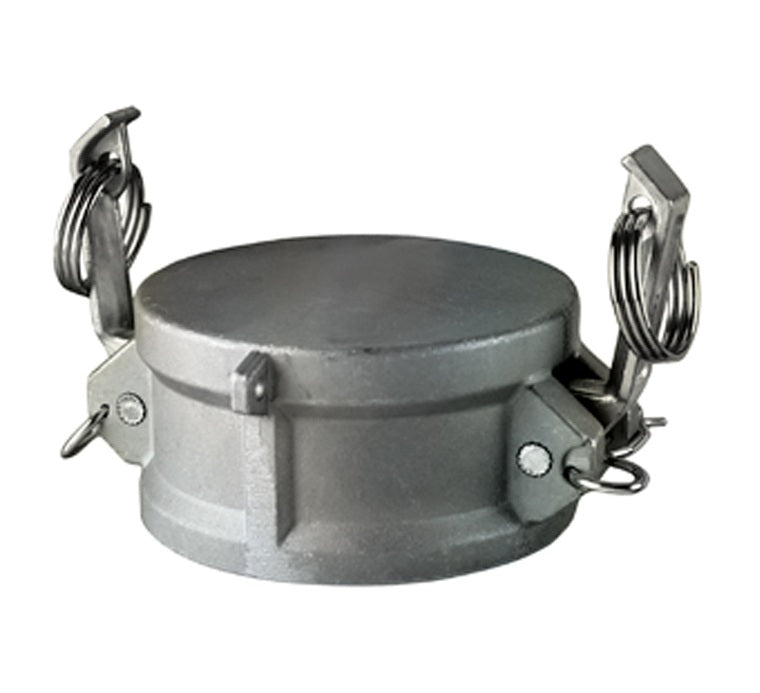

SS304-DC300 by Kuriyama | SS304-DC Series | Part DC | Cam & Groove Dust Cap | 3" Size | 304 Stainless Steel
Kuriyama of America Inc.
Cam & Groove (Camlock) Dust Cap | SS304-DC Series | Part DC | 304 Stainless Steel
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $63.17 |
| 40–79 | $57.12 |
| 80+ | $50.40 |
Discounts applied in cart/checkout.
Product Data:
Series:
MAWP:
150
Cam & Groove Type:
Type DC
Ends Configuration:
Material(s):
Seal Material(s):
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Stainless steel is widely used for manufacturing fittings due to its strength, corrosion resistance, and ability to withstand extreme temperatures.
- An ideal option for food and beverage applications, which entail frequent, high temperature sanitation protocols.
- The durability and corrosion resistance also lend themselves to marine, oil and gas, and similarly demanding environments.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance.
What are the Materials?
- ASTM stainless steel alloy.
- Complies with Mil-Spec A-A-59326 for material and interchangeability in relevant sizes.
- 304 stainless steel handles, handle pins, pull rings, and safety clips.
- Buna-N gasket included.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification |
Weight Each (lbs) |
|---|---|---|---|---|
| SS304-DC050 | 1/2" | 250 PSI | A666/304 | 0.25 lbs |
| SS304-DC075 | 3/4" | 250 PSI | A666/304 | 0.36 lbs |
| SS304-DC100 | 1" | 250 PSI | A666/304 | 0.54 lbs |
| SS304-DC125 | 1-1/4" | 250 PSI | A666/304 | 1.30 lbs |
| SS304-DC150 | 1-1/2" | 250 PSI | A666/304 | 1.46 lbs |
| SS304-DC200 | 2" | 250 PSI | A666/304 | 1.78 lbs |
| SS304-DC250 | 2-1/2" | 150 PSI | A666/304 | 2.38 lbs |
| SS304-DC300 | 3" | 150 PSI | A666/304 | 3.04 lbs |
| SS304-DC400 | 4" | 150 PSI | A666/304 | 5.02 lbs |
| SS304-DC500 | 5" | 75 PSI | A666/304 | 7.35 lbs |
| SS304-DC600 | 6" | 75 PSI | A666/304 | 9.92 lbs |
