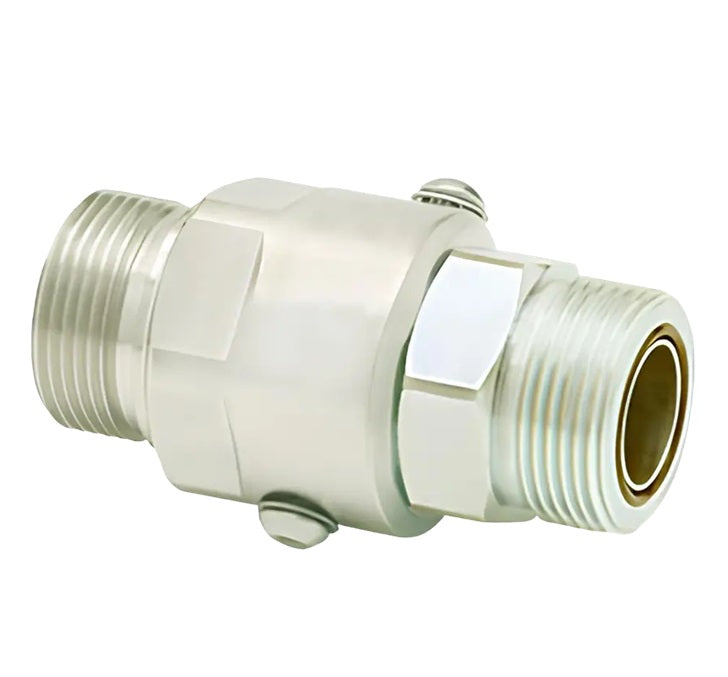

SS16DBMFS16XMFS16-Z-90V by Super Swivel | 16073-Z-90V | Super Duty Swivel | 1-5/16-12 Male Face Seal MFS x 1-5/16-12 Male Face Seal MFS | Straight | Zinc | Viton Seal
SS16DBMFS16XMFS16-Z-90V by Super Swivel | 16073-Z-90V | Super Duty Swivel | 1-5/16-12 Male Face Seal MFS x 1-5/16-12 Male Face Seal MFS | Straight | Zinc | Viton Seal

SS16DBMFS16XMFS16-Z-90V by Super Swivel | 16073-Z-90V | Super Duty Swivel | 1-5/16-12 Male Face Seal MFS x 1-5/16-12 Male Face Seal MFS | Straight | Zinc | Viton Seal

Sale price$152.83

Super Swivels
Super-Duty-Swivels - Straight - 16 Male Face Seal MFS X Male Face Seal MFS
Buy More, Save More!
Quantity Price Each
5–19 $143.66
20–59 $129.91
60+ $114.62
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Male O-Ring Face Seal
  • 1in Male O-Ring Face Seal
  • Some Ends Match
Material(s):
  • Zink-Plated Carbon Steel
Features:
  • For heavy-duty applications Super-Duty-Swivels™ offer a multiple bearing race design for superior side load strength and added load bearing support.
  • The inner and outer race for the ball bearings is integrally designed and machined within tight tolerances into the hardened metal of the male stem and female body, providing a rigid track for the balls to roll freely, yet securely.
  • Super-Duty-Swivels superior design, construction and seals allow for higher maximum pressure ratings than others, even in 90° configuration.
  • Sizes range from 1/4" through 1-1/2" body thread with multiple fittings and seal configurations including Inline and 90° Swivels.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)

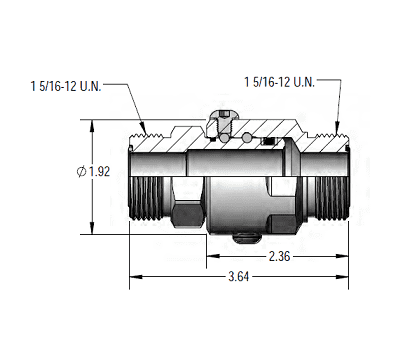

Part Number Material Seal Male
Face Seal MFS		 Male
Face Seal MFS		 Overall
Length		 Diameter Max
Pressure
SS16DBMFS16XMFS16-Z-90V Zinc Viton 1-5/16-12 UN 1-5/16-12 UN 3.64" 1.92" 4500 PSI

Super Swivels

Super Swivels® was established in 1986 and is a leader in the design and manufacture of hydraulic live swivels. Super Swivels are used in a wide variety of applications, i.e. hose reels, hydraulic log loaders, paint equipment, automatic car washes, wrecker trucks, horizontal directional drilling, machine tool indexers, hydraulic wheel motors, hot tar applicators, robotics, power line equipment, railroad equipment, and mining equipment, to mention a few.
