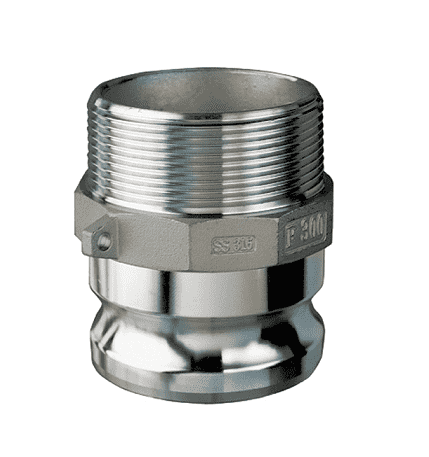

SS-F100 by Kuriyama | Quick-Acting Coupling | Part F | 1" Male Adapter x 1" Male NPT | 316 Stainless Steel

SS-F100 by Kuriyama | Quick-Acting Coupling | Part F | 1" Male Adapter x 1" Male NPT | 316 Stainless Steel

Sale price$24.95

Kuriyama Couplings™ - Quick-Acting Couplings - Part F - Male Adapter x Male NPT - 316 Stainless Steel

Buy More, Save More!
Quantity Price Each
10–39 $23.45
40–79 $21.21
80+ $18.71
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type F

Ends Configuration:
  • 1in Male Cam & Groove
  • 1in Male NPT
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 316 stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
SS-F050 1/2 x 1/2" 0.30 lbs
SS-F075 3/4" x 3/4" 0.40 lbs.
SS-F100 1" x 1" 0.56 lbs.
SS-F125 1-1/4" x 1-1/4" 1.06 lbs.
SS-F150 1-1/2" x 1-1/2" 1.28 lbs.
SS-F200 2" x 2" 1.82 lbs.
SS-F250 2-1/2" x 2-1/2" 2.68 lbs.
SS-F300 3" x 3" 3.92 lbs.
SS-F400 4" x 4" 6.32 lbs.
SS-F500 5" x 5" 8.26 lbs.
SS-F600 6" x 6" 11.27 lbs.
