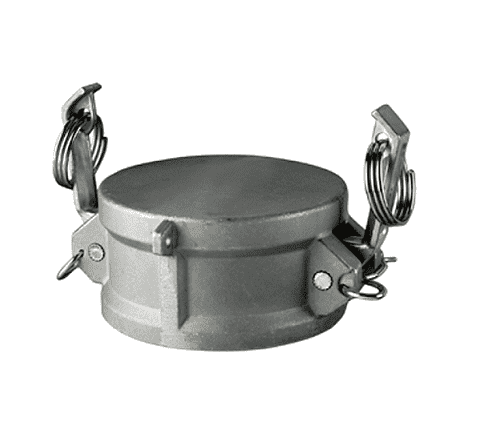

SS-DC075 by Kuriyama | Quick-Acting Coupling | Part DC | 3/4" Dust Cap | 316 Stainless Steel

SS-DC075 by Kuriyama | Quick-Acting Coupling | Part DC | 3/4" Dust Cap | 316 Stainless Steel

Sale price$21.13

Kuriyama Couplings™ - Quick-Acting Couplings - Part DC - Dust Cap - 316 Stainless Steel

Buy More, Save More!
Quantity Price Each
10–39 $19.86
40–79 $17.96
80+ $15.85
Discounts applied in cart/checkout.

Product Data:

Cam & Groove Type:

Type DC

Ends Configuration:
  • 3/4in Female Cam & Groove
Material(s):
  • 316 Stainless Steel
Applications:
  • Agriculture, Chemicals/Petroleum, Construction, Fracking, Irrigation, Material Handling
  • For use with Kuriyama Hoses
Features:
  • All sizes except 1/2" and 5" comply with Mil-Spec A-A-59326 for interchangeability.
  • 5" Size complies with ASTM specs for interchangeability.
  • 1/2" x 1/2" are not specified under Mil Specs.
  • Stainless steel alloy chemical composition is analyzed on every melt.
  • Composition test certificate is available upon request.
  • Locking feature using safety clips to prevent disconnection during use on all sizes except 1/2".
Materials:
  • ASTM A666 316 stainless steel alloy.
  • Type 304 stainless steel handles.
  • Type 304 stainless steel handle pins.
  • Type 304 stainless steel pull rings.
  • Type 304 stainless steel safety clips.
  • Buna-N Gaskets.
Part Number Size Weight (Lbs.)
SS-DC050 1/2" 0.25 lbs
SS-DC075 3/4" 0.36 lbs.
SS-DC100 1" 0.54 lbs.
SS-DC125 1-1/4" 1.30 lbs.
SS-DC150 1-1/2" 1.46 lbs.
SS-DC200 2" 1.78 lbs.
SS-DC250 2-1/2" 2.38 lbs.
SS-DC300 3" 3.04 lbs.
SS-DC400 4" 5.02 lbs.
SS-DC500 5" 7.35 lbs.
SS-DC600 6" 9.92 lbs.
