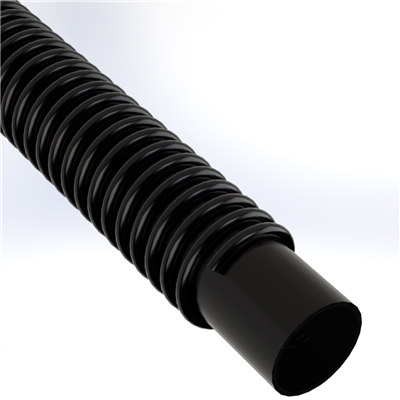

SPVC-URE-B-2.5-100 by Texcel | SIGMA-URE-B™ Series | Polyurethane Material Handling Hose with PVC Cover | 2-1/2" Hose ID | 40 PSI | 29 in/Hg Vacuum Rated | Black | 100ft Length
SIGMA by Texcel
URE-B™ Series | Polyurethane Material Handling Hose with PVC Cover
Package Quantity: 100 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,360.86 |
| 8–14 | $1,302.95 |
| 15+ | $1,158.18 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | Abrasion-resistant, polyurethane tube for material handling in dry applications, such as sandblast recovery lines, roof rock cleaning and other abrasive applications. Made of static-dissipating material that remains flexible at low temperatures for ease of handling. | Construction: | Black, flexible PVC and smooth with black, rigid, right-handed helix and smooth, polyurethane liner |
| Safety Factor: | 3:1 | Temperature: | -40°F to +150°F |
| Compared To: | UBK | Safety Note: | Service temperature depends on actual application |
| Part Number | Hose ID | Hose OD | Std. Length | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./Ft |
|---|---|---|---|---|---|---|---|
| SPVC-URE-B-2.0-100 | 2" | 2.40" | 100' | 40 | 29 | 2" | 0.51 lbs |
| SPVC-URE-B-2.5-100 | 2-1/2" | 3.10" | 100' | 40 | 29 | 4" | 0.77 lbs |
| SPVC-URE-B-3.0-100 | 3" | 3.55" | 100' | 40 | 29 | 4" | 0.87 lbs |
| SPVC-URE-B-4.0-100 | 4" | 4.68" | 100' | 35 | 29 | 6" | 1.55 lbs |
| SPVC-URE-B-5.0-100 | 5" | 5.71" | 100' | 30 | 28 | 10" | 2.30 lbs |
| SPVC-URE-B-6.0-20 | 6" | 7.05" | 20' | 30 | 28 | 12" | 3.40 lbs |
| SPVC-URE-B-6.0-100 | 6" | 7.05" | 100' | 30 | 28 | 12" | 3.40 lbs |
| SPVC-URE-B-8.0-20 | 8" | 9.05" | 20' | 30 | 28 | 15" | 4.88 lbs |
