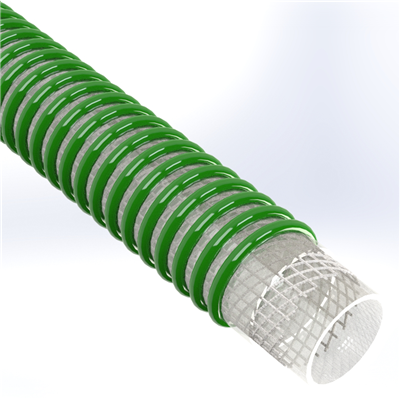

SPVC-TDG-3.0-100 by Texcel | SIGMA-TDG™ Series | Tank Drop Hose | 3" Hose ID | 65 PSI | 29 in/Hg Vacuum Rated | Clear w/ Green Spiral Yarn
SIGMA™ by Texcel
TDG™ Series | Tank Drop Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $32.46 |
| 40–79 | $29.35 |
| 80+ | $25.90 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
Special Properties:
| Technical Data: | |||
|---|---|---|---|
| Description: | High quality tank drop hose designed with specially compounded, non-permeable polyurethane, designed to be compatible with gasoline, diesel and most biofuels, such as ethanol (up to E98) and biodiesel (B100 meeting ASTM D-6751). Extremely flexible, even in sub-zero temperatures. | Construction: | Clear, specially compounded polyurethane with a rigid PVC right-handed helix (green) with spiraled synthetic yarn |
| Grounding: | Embedded tin coated copper wire | ||
| Safety Factor: | 4:1 | Temperature: | -40°F to +150°F (service temperature depends on actual application) |
| Branding: | TEXCEL® SIGMA™-TDG - TANK DROP HOSE - LOT | Compared To: | TDH Tigerdrop Clear |
| Sleeves: | SIGMA-TDG™-Sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures | Features: | Compatible with ethanol up to E98 & biodiesel up to B100 |
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| SPVC-TDG-3.0-100 | 3" | 3.63" | 65 psi | 29 | 6" | 1.21 lbs |
| SPVC-TDG-4.0-100 | 4" | 4.73" | 65 psi | 29 | 8" | 1.72 lbs |
