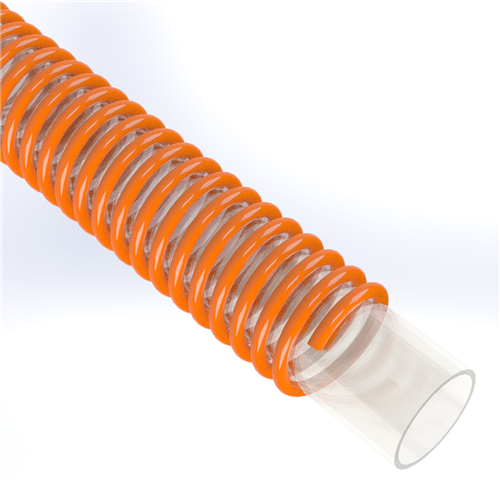

SPVC-PU-3.0-50 by Texcel | SIGMA-POLY-U™ Series | Lightweight Polyurethane Hose | 3" Hose ID | 7 PSI | 19 in/Hg Vacuum Rated | Clear w/ Orange Helix | 50ft Length
Package Quantity: 50 Feet
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Data: | |||
|---|---|---|---|
| Description: | Extremely flexible hose, ideal for leaf collection, mulch blowing, straw blowing, wood chips, saw dust, lawn cleaning and concrete surface preparation equipment. The smooth bore polyurethane tube allows for high abrasion resistance and unrestricted flow. | Construction: | Clear, polyurethane (ether-based) with exposed orange, rigid PVC, right-handed helix |
| Safety Factor: | 3:1 | Temperature: | -4°F to +150°F |
| Branding: | TEXCEL® SIGMA-POLY U™ -LIGHTWEIGHT POLYURETHANE HOSE -LOT | Compared To: | Urevac-1/150 UDH |
| Safety Note: | Service temperature depends on actual application | ||
| Part Number | Hose ID | Hose OD | Std. Length | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./Ft |
|---|---|---|---|---|---|---|---|
| SPVC-PU-1.5-50 | 1-1/2" | 1.91" | 50' | 20 | 22 | 1" | 0.23 lbs |
| SPVC-PU-2.0-50 | 2" | 2.46" | 50' | 15 | 21 | 1.5" | 0.32 lbs |
| SPVC-PU-2.5-50 | 2-1/2" | 3.01" | 50' | 9 | 19 | 1.5" | 0.34 lbs |
| SPVC-PU-3.0-50 | 3" | 3.60" | 50' | 8 | 19 | 2.5" | 0.48 lbs |
| SPVC-PU-4.0-100 | 4" | 4.72" | - | 7 | 13 | 3" | 0.70 lbs |
| SPVC-PU-5.0-100 | 5" | 5.94" | - | 6 | 10 | 4" | 0.89 lbs |
| SPVC-PU-6.0-50 | 6" | 7.17" | 50' | 5 | 7 | 5" | 1.15 lbs |
| SPVC-PU-8.0-50 | 8" | 9.33" | 50' | 3 | 5 | 7" | 1.65 lbs |
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
Special Properties:
