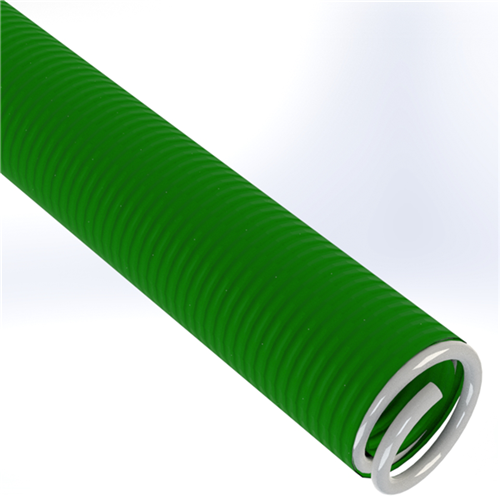

SPVC-GR-6.0-100- by Texcel | SIGMA-HD Series | Heavy-Duty Water Suction Hose | 6" Hose ID | 50 PSI | 29 in/Hg Vacuum Rated | Green
SIGMA-HD by Texcel
GREEN PVC™ Series | Heavy-Duty Green PVC Water Suction Hose
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $442.49 |
| 8–14 | $423.66 |
| 15+ | $376.58 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
| Part Number | Hose ID | Hose OD | Working Pressure (psi/bar) | Vacuum (in./HG) | Bend Radius | Lbs./ft | |
|---|---|---|---|---|---|---|---|
| SPVC-GR-1.5-100 | 1-1/2" | 1.77" | 100' | 85 psi | 29 | 4" | 0.39 lbs |
| SPVC-GR-2.0-100 | 2" | 2.24" | 100' | 70 psi | 29 | 5" | 0.57 lbs |
| SPVC-GR-2.5-100 | 2-1/2" | 2.80" | 100' | 70 psi | 29 | 6.5" | 0.74 lbs |
| SPVC-GR-3.0-100 | 3" | 3.27" | 100' | 65 psi | 29 | 8.5" | 0.94 lbs |
| SPVC-GR-4.0-100 | 4" | 4.67" | 100' | 65 psi | 29 | 12" | 1.48 lbs |
| SPVC-GR-5.0-100 | 5" | 5.51" | 100' | 50 psi | 29 | 14" | 2.15 lbs |
| SPVC-GR-6.0-100 | 6" | 6.93" | - | 50 psi | 29 | 15" | 2.89 lbs |
| SPVC-GR-8.0-20 | 8" | 8.66" | 20' | 45 psi | 29 | 20" | 4.37 lbs |
| POLY-G-10.0-25 | 10" | 11.34" | 25' | 30 psi | 29 | 35" | 7.45 lbs |
| POLY-G-12.0-25 | 12" | 13.39" | 25' | 30 psi | 29 | 40" | 8.87 lbs |
