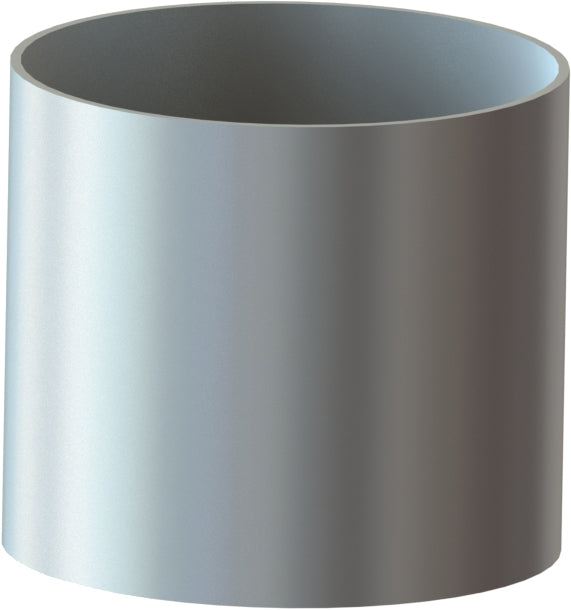

SPS200248 by Campbell Fittings | Sleeve | 2" Hose Size | 2-48/64" Sleeve I.D. | Plated Steel
Minimum Order Quantity: 5 Units
by Campbell
Sleeves:for use with products of Campbell Cobra™ Parts C & E and Standard Cobra™ Parts C & E
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.50 |
| 40–79 | $6.78 |
| 80+ | $5.99 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
| CampbellCrimpnology™: | Crimpnology refers to all of the technology involved in crimping: The integrated design of every fitting, coupling, ferrule, and sleeve; the crimp procedures; crimp specifications; and crimp training & support. |
|---|---|
| Features and Benefits: | Crimpnology offers the following “7 Essentials” for crimping safe, repeatable, performance-rated hose systems:
|
| Performance Rated: | All Campbell pressure ratings are established and verified by hydrostatic testing to a 4x safety factor where applicable (see page 1 for pressure rating information). Test data and information regarding various combinations of hoses and fittings are available upon request.
|
| Part Number | Hose Size | Sleeve ID |
|---|---|---|
| SPS075108 | 3/4" | 1-8/64" |
| SPS075112 | 3/4" | 1-12/64" |
| SPS075116 | 3/4" | 1-16/64" |
| SPS075124 | 3/4" | 1-24/64" |
| SPS100116 | 1" | 1-16/64" |
| SPS100120 | 1" | 1-20/64" |
| SPS100124 | 1" | 1-24/64" |
| SPS100128 | 1" | 1-28/64" |
| SPS100132 | 1" | 1-32/64" |
| SPS100136 | 1" | 1-36/64" |
| SPS100140 | 1" | 1-40/64" |
| SPS100144 | 1" | 1-44/64" |
| SPS100148 | 1" | 1-48/64" |
| SPS125156 | 1-1/4" | 1-56/64" |
| SPS125200 | 1-1/4" | 2" |
| SPS150148 | 1-1/2" | 1-48/64" |
| SPS150152 | 1-1/2" | 1-52/64" |
| SPS150156 | 1-1/2" | 1-56/64" |
| SPS150160 | 1-1/2" | 1-60/64" |
| SPS150200 | 1-1/2" | 2" |
| SPS150204 | 1-1/2" | 2-4/64" |
| SPS150208 | 1-1/2" | 2-8/64" |
| SPS150212 | 1-1/2" | 2-12/64" |
| SPS150216 | 1-1/2" | 2-16/64" |
| SPS150220 | 1-1/2" | 2-20/64" |
| SPS150224 | 1-1/2" | 2-24/64" |
| SPS200216 | 2" | 2-16/64" |
| SPS200224 | 2" | 2-24/64" |
| SPS200228 | 2" | 2-28/64" |
| SPS200232 | 2" | 2-32/64" |
| SPS200236 | 2" | 2-36/64" |
| SPS200240 | 2" | 2-40/64" |
| SPS200244 | 2" | 2-44/64" |
| SPS200248 | 2" | 2-48/64" |
| SPS200252 | 2" | 2-52/64" |
| SPS200256 | 2" | 2-56/64" |
| SPS200260 | 2" | 2-60/64" |
| SPS200300 | 2" | 3" |
| SPS200302 | 2" | 3-2/64" |
| SPS250300 | 2-1/2" | 3" |
| SPS250308 | 2-1/2" | 3-8/64" |
| SPS250316 | 2-1/2" | 3-16/64" |
| SPS250324 | 2-1/2" | 3-24/64" |
| SPS250332 | 2-1/2" | 3-32/64" |
| SPS250334 | 2-1/2" | 3-34/64" |
| SPS300316 | 3" | 3-16/64" |
| SPS300324 | 3" | 3-24/64" |
| SPS300328 | 3" | 3-28/64" |
| SPS300332 | 3" | 3-32/64" |
| SPS300336 | 3" | 3-36/64" |
| SPS300340 | 3" | 3-40/64" |
| SPS300344 | 3" | 3-44/64" |
| SPS300348 | 3" | 3-48/64" |
| SPS300352 | 3" | 3-52/64" |
| SPS300356 | 3" | 3-56/64" |
| SPS300360 | 3" | 3-60/64" |
| SPS300400 | 3" | 4" |
| SPS300402 | 3" | 4-2/64" |
| SPS400416 | 4" | 4-16/64" |
| SPS400424 | 4" | 4-24/64" |
| SPS400432 | 4" | 4-32/64" |
| SPS400436 | 4" | 4-36/64" |
| SPS400440 | 4" | 4-40/64" |
| SPS400444 | 4" | 4-44/64" |
| SPS400448 | 4" | 4-48/64" |
| SPS400452 | 4" | XX-XX/64" |
| SPS400456 | 4" | 4-56/64" |
| SPS400460 | 4" | 4-60/64" |
| SPS400500 | 4" | 5" |
| SPS400502 | 4" | 5-2/64" |
| SPS500536 | 5" | 5-36/64" |
| SPS500548 | 5" | 5-48/64" |
| SPS500560 | 5" | 5-60/64" |
| SPS600616 | 6" | 6-16/64" |
| SPS600624 | 6" | 6-24/64" |
| SPS600632 | 6" | 6-32/64" |
| SPS600640 | 6" | 6-40/64" |
| SPS600648 | 6" | 6-48/64" |
| SPS600656 | 6" | 6-56/64" |
| SPS600700 | 6" | 7" |
| SPS600708 | 6" | 7-8/64" |
| SPS600716 | 6" | 7-16/64" |
| SPS600724 | 6" | 7-24/64" |
| SPS800816 | 8" | 8-16/64" |
| SPS800832 | 8" | 8-32/64" |
| SPS800840 | 8" | 8-40/64" |
| SPS800848 | 8" | 8-48/64" |
| SPS800900 | 8" | 9" |
| SPS800916 | 8" | 9-16/64" |
| SPS800932 | 8" | 9-32/64" |
| SPS800940 | 8" | 8-40/64" |
| SPS800948 | 8" | 9-48/64" |
| SPS101032 | 10" | 10-32/64" |
| SPS101048 | 10" | 10-48/64" |
| SPS101056 | 10" | 10-56/64" |
| SPS101100 | 10" | 11" |
| SPS101116 | 10" | 11-16/64" |
| SPS101132 | 10" | 11-32/64" |
| SPS101148 | 10" | 11-48/64" |
| SPS121232 | 12" | 12-32/64" |
| SPS121248 | 12" | 12-48/64" |
