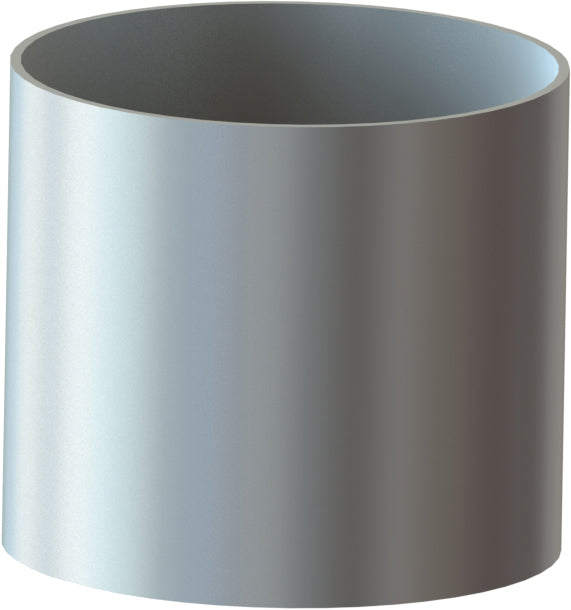

SPS075116S by Campbell Fittings | Sleeve | 3/4" Hose Size | 1-16/64" Sleeve I.D. | Plated Steel
Minimum Order Quantity: 5 Units
by Campbell
Sleeves:for use with products of Campbell Combination Nipples, Suction Hose Couplings and Ball & Socket Couplings
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.24 |
| 40–79 | $6.55 |
| 80+ | $5.78 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
Special Properties:
| CampbellCrimpnology™: | Crimpnology refers to all of the technology involved in crimping: The integrated design of every fitting, coupling, ferrule, and sleeve; the crimp procedures; crimp specifications; and crimp training & support. |
|---|---|
| Features and Benefits: | Crimpnology offers the following “7 Essentials” for crimping safe, repeatable, performance-rated hose systems:
|
| Performance Rated: | All Campbell pressure ratings are established and verified by hydrostatic testing to a 4x safety factor where applicable (see page 1 for pressure rating information). Test data and information regarding various combinations of hoses and fittings are available upon request.
|
| Part Number | Hose Size | Sleeve ID |
|---|---|---|
| SPS050100S | 1/2" | 1" |
| SPS075108S | 3/4" | 1-8/64" |
| SPS075112S | 3/4" | 1-12/64" |
| SPS075116S | 3/4" | 1-16/64" |
| SPS075120S | 3/4" | 1-20/64" |
| SPS075124S | 3/4" | 1-24/64" |
| SPS100128S | 1" | 1-28/64" |
| SPS100132S | 1" | 1-32/64" |
| SPS100136S | 1" | 1-36/64" |
| SPS100140S | 1" | 1-40/64" |
| SPS100144S | 1" | 1-44/64" |
| SPS100148S | 1" | 1-48/64" |
| SPS125140S | 1-1/4" | 1-40/64" |
| SPS125148S | 1-1/4" | 1-48/64" |
| SPS125152S | 1-1/4" | 1-52/64" |
| SPS125156S | 1-1/4" | 1-56/64" |
| SPS150160S | 1-1/4" | 1-60/64" |
| SPS150200S | 1-1/4" | 2" |
| SPS150204S | 1-1/2" | 2-4/64" |
| SPS150208S | 1-1/2" | 2-8/64" |
| SPS150212S | 1-1/2" | 2-12/64" |
| SPS150216S | 1-1/2" | 2-16/64" |
| SPS150220S | 1-1/2" | 2-20/64" |
| SPS150224S | 1-1/2" | 2-24/64" |
| SPS200208S | 2" | 2-8/64" |
| SPS200216S | 2" | 2-16/64" |
| SPS200224S | 2" | 2-24/64" |
| SPS200228S | 2" | 2-28/64" |
| SPS200232S | 2" | 2-32/64" |
| SPS200236S | 2" | 2-36/64" |
| SPS200240S | 2" | 2-40/64" |
| SPS200244S | 2" | 2-44/64" |
| SPS200248S | 2" | 2-48/64" |
| SPS200252S | 2" | 2-52/64" |
| SPS200256S | 2" | 2-56/64" |
| SPS200260S | 2" | 2-60/64" |
| SPS200300S | 2" | 3" |
| SPS250248S | 2-1/2" | 2-48/64" |
| SPS250256S | 2-1/2" | 2-56/64" |
| SPS250300S | 2-1/2" | 3" |
| SPS250308S | 2-1/2" | 3-8/64" |
| SPS250316S | 2-1/2" | 3-16/64" |
| SPS250324S | 2-1/2" | 3-24/64" |
| SPS250332S | 2-1/2" | 3-32/64" |
| SPS300308S | 3" | 3-8/64" |
| SPS300316S | 3" | 3-16/64" |
| SPS300324S | 3" | 3-24/64" |
| SPS300328S | 3" | 3-28/64" |
| SPS300332S | 3" | 3-32/64" |
| SPS300336S | 3" | 3-36/64" |
| SPS300340S | 3" | 3-40/64" |
| SPS300344S | 3" | 3-44/64" |
| SPS300348S | 3" | 3-48/64" |
| SPS300352S | 3" | 3-52/64" |
| SPS300356S | 3" | 3-56/64" |
| SPS300360S | 3" | 3-60/64" |
| SPS300400S | 3" | 4" |
| SPS400416S | 4" | 4-16/64" |
| SPS400424S | 4" | 4-24/64" |
| SPS400432S | 4" | 4-32/64" |
| SPS400436S | 4" | 4-36/64" |
| SPS400440S | 4" | 4-40/64" |
| SPS400444S | 4" | 4-44/64" |
| SPS400448S | 4" | 4-48/64" |
| SPS400452S | 4" | 4-52/64" |
| SPS400456S | 4" | 4-56/64" |
| SPS400460S | 4" | 4-60/64" |
| SPS400500S | 4" | 5" |
