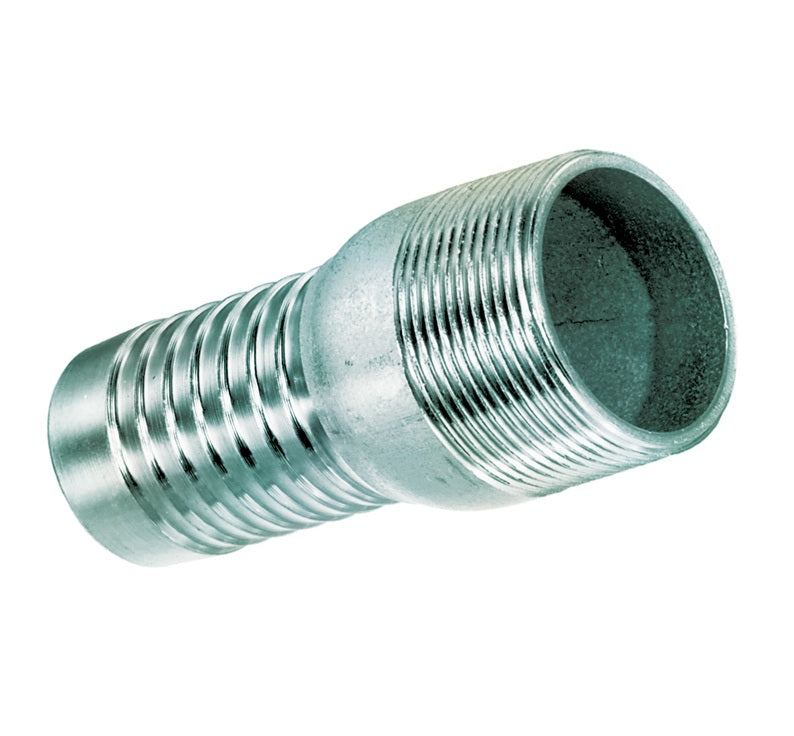

SPN125 by Kuriyama | SPN Series | Combination Hose Nipple | 1-1/4" Male NPT x 1-1/4" Hose Barb | Zinc Plated Steel
Minimum Order Quantity: 5 Units
Buy more, save moreDiscounts applied in cart/checkout.
What are the Features?
- Versatile hose connectors designed to connect hose and pipes of the same thread size.
- Frequently used in low pressure suction and discharge applications, and can be connected to many different types of strainers and couplings.
- Multi-serrated barb design allows for secure hose grip when properly clamped or crimped.
What are the Materials?
- Zinc Plated Steel - Complies with ASTM A53 B welded pipe.
| Part Number | Male NPT Size (in) |
Hose Shank Size (in) |
PSI Rating at 70°F |
Weight Each (lbs) |
|---|---|---|---|---|
| SPN050 | 1/2" | 1/2" | 125 PSI | 0.14 lbs |
| SPN075 | 3/4" | 3/4" | 125 PSI | 0.22 lbs |
| SPN100 | 1" | 1" | 125 PSI | 0.32 lbs |
| SPN125 | 1-1/4" | 1-1/4" | 125 PSI | 0.56 lbs |
| SPN150 | 1-1/2" | 1-1/2" | 125 PSI | 0.72 lbs |
| SPN200 | 2" | 2" | 75 PSI | 1.10 lbs |
| SPN250 | 2-1/2" | 2-1/2" | 75 PSI | 1.74 lbs |
| SPN300 | 3" | 3" | 75 PSI | 2.18 lbs |
| SPN400 | 4" | 4" | 75 PSI | 3.22 lbs |
| SPN600 | 6" | 6" | 75 PSI | 12.24 lbs |
| SPN800 | 8" | 8" | 50 PSI | 16.44 lbs |
| SPN1000 | 10" | 10" | 50 PSI | 21.78 lbs |
| SPN1200 | 12" | 12" | 50 PSI | 33.18 lbs |
| Reducer / Jump Sizes | ||||
|---|---|---|---|---|
| Part Number | Male NPT Size (in) |
Hose Shank Size (in) |
PSI Rating at 70°F |
Weight Each (lbs) |
| SPRN-075100 | 1" | 3/4" | 125 PSI | 0.35 lbs |
| SPRN-100075 | 3/4" | 1" | 125 PSI | 0.19 lbs |
| SPRN-100125 | 1-1/4" | 1" | 125 PSI | 0.44 lbs |
| SPRN-125100 | 1" | 1-1/4" | 125 PSI | 0.30 lbs |
| SPRN-125150 | 1-1/2" | 1-1/4" | 125 PSI | 0.65 lbs |
| SPRN-150125 | 1-1/4" | 1-1/2" | 125 PSI | 0.44 lbs |
| SPRN-150200 | 2" | 1-1/2" | 75 PSI | 0.88 lbs |
| SPRN-200150 | 1-1/2" | 2" | 75 PSI | 0.73 lbs |
| SPRN-200250 | 2-1/2" | 2" | 75 PSI | 1.65 lbs |
| SPRN-250200 | 2" | 2-1/2" | 75 PSI | 1.40 lbs |
| SPRN-250300 | 3" | 2-1/2" | 75 PSI | 1.92 lbs |
| SPRN-300250 | 2-1/2" | 3" | 75 PSI | 1.91 lbs |
| SPRN-300400 | 4" | 3" | 75 PSI | 2.95 lbs |
| SPRN-400300 | 3" | 4" | 75 PSI | 2.91 lbs |
Additional Product Data:
Series:
MAWP:
125
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
