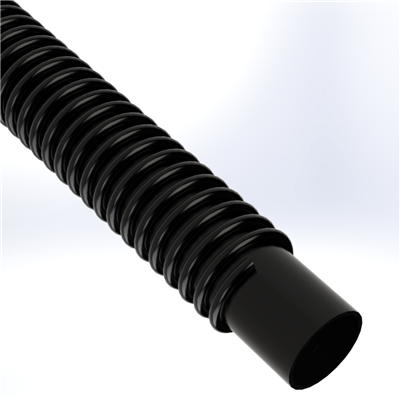

SP-VAC-4.0-100 by Texcel | SIGMA-ULTRAVAC™ Series | Polyurethane Vacuum Hose | 4" Hose ID | 30 PSI | 29 in/Hg Vacuum Rated | Black | 100ft Length

$2,181.45

SIGMA by Texcel
ULTRAVAC™ Series | Polyurethane Vacuum Hose

Package Quantity: 100 Feet

Quantity:

Discounts applied in cart/checkout.

Product Data:

Brand:

Series:

Color(s):

Technical Data:
Description:	Heavy-duty, abrasion-resistant suction hose for use in a variety of wet and dry, industrial vacuum applications including: vacuum trucks, hydro-excavators, sewer cleaners, street sweepers. SIGMA-ULTRAVAC™ is ideal for handling a wide range of materials, such as crushed rock, sand, pea gravel, dry-cement, grains and slurries. Made of with a permanently conductive tube that remains flexible at low temperatures for ease of handling.	Construction:	Smooth permanently conductive, high abrasion resistant, polyurethane liner with a black, specially formulated polymer and a rigid PVC right-handed helix
Safety Factor:	3:1	Temperature:	-40°F to +158°F
Branding:	TEXCEL® SIGMA-ULTRAVAC™ - POLYURETHANE SUCTION HOSE -LOT	Safety Note:	NOT recommended for constant contact with fuels or petroleum products Service temperature depends on actual application
Compared To:	ARVAC-SW	Features:	Superior flexibility at low temperatures

Part Number	Hose ID	Hose OD	Std. Length	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./Ft
SP-VAC-2.0-100	2"	2-36/64"	100'	30	29	2"	0.74 lbs
SP-VAC-3.0-100	3"	3-38/64"	100'	30	29	3"	1.11 lbs
SP-VAC-4.0-100	4"	4-47/64"	100'	30	29	4"	1.80 lbs
SP-VAC-5.0-100	5"	5-34/64"	100'	30	27	6"	2.32 lbs
SP-VAC-6.0-100	6"	6-49/64"	100'	15	27	8"	2.86 lbs
SP-VAC-8.0-50	8"	8-7/8"	50'	15	27	14"	4.27 lbs
