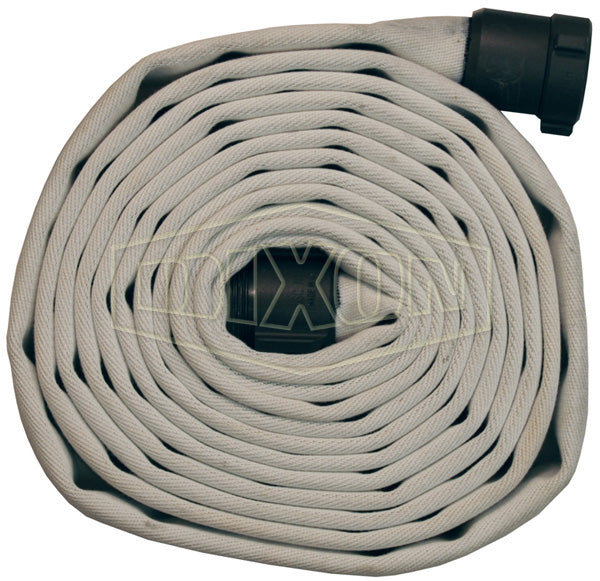

SM515W50RAF Dixon Single Jacket MSHA Approved Mine Fire Hose - Coupled - Female x Male NST(NH) (Aluminum) Expansion Ring Couplings - 1-1/2" Hose Size - 1-13/16" Bowl Size - 50ft Length

SM515W50RAF Dixon Single Jacket MSHA Approved Mine Fire Hose - Coupled - Female x Male NST(NH) (Aluminum) Expansion Ring Couplings - 1-1/2" Hose Size - 1-13/16" Bowl Size - 50ft Length

Sale price$525.05
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Outer construction: single jacket, synthetic flame resistant
  • Tube construction: flame resistant lining
  • Proof pressure: 500 PSI at 70°F (21°C)
  • Service test pressure: 250 PSI at 70°F (21°C)
  • Working pressure: 225 PSI at 70°F (21°C)
Part Number Size Bowl Size Thread Length Weight
(Lbs.)
Coupled with Female and Male Aluminum Rocker Lug Expansion Ring Couplings
SM515W50RAF 1-1/2" 1-13/16" Female x Male NST (NH) 50 ft 13.2000
SM515W50RAS 1-1/2" 1-13/16" Female x Male NPSH 50 ft 14.9500

Additional Product Data:

Series:
  • Fire Hose
Color(s):
  • White/Off-White
Internal Diameter:
  • 1.50in

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
