SM2014R by ZSi-Foster | C-Rail Mount Beta Clamp (Metric) | Standard Series | For 14mm Assembly | Polypropylene/Steel

SM2014R by ZSi-Foster | C-Rail Mount Beta Clamp (Metric) | Standard Series | For 14mm Assembly | Polypropylene/Steel

Minimum Order Quantity: 5 Units

Sale price$7.30

ZSI-Foster
Beta Hydraulic Clamps (Metric) - Standard Series - C-Rail Mount - Polypropylene / Steel

- Cushions are Polypropylene (Green Color).

- Recommended for systems with less than 1,500 psi (103 bar) without dynamic loads.

- Use for standard hydraulics, general pipe construction, electrical cables, and general duty piping applications subject to moderate levels of shock and vibration.
Buy More, Save More!
Quantity Price Each
20–39 $6.86
40–79 $6.21
80+ $5.48
Discounts applied in cart/checkout.

Product Data:

Series:
  • Standard Series
Maximum Clamp I.D.:

14mm
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: Steel
  • Cushion: Polypropylene (Green)
Installation:

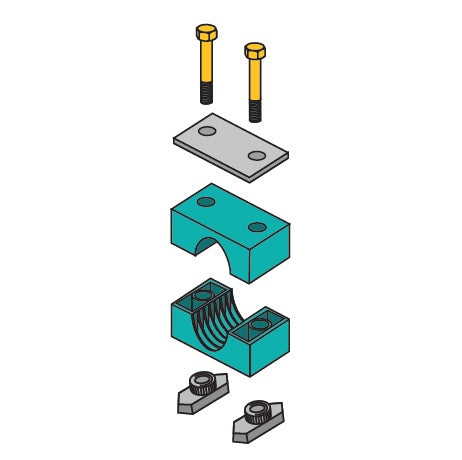

Assembly Includes:
Quantity Description
2 Each Hex Bolts
1 Each Cover Plate
1 Set Cushions
2 Each C-Rail Nuts
Part Number Size Bolt Length
SM1008R 8mm 1-1/4"
SM1012R 12mm 1-1/4"
SM2014R 14mm 1-3/8"
SM2015R 15mm 1-3/8"
SM2018R 18mm 1-3/8"
SM3020R 20mm 1-1/2"
SM3025R 25mm 1-1/2"
SM4030R 30mm 1-3/4"
SM5035R 35mm 2-1/2"
