SM2014B by ZSi-Foster | Beta Clamp Stacking Kit (Metric) | Standard Series | For 14mm Assembly | Polypropylene/Steel

SM2014B by ZSi-Foster | Beta Clamp Stacking Kit (Metric) | Standard Series | For 14mm Assembly | Polypropylene/Steel

Minimum Order Quantity: 5 Units

Sale price$8.16
Buy more, save moreDiscounts applied in cart/checkout.
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: Steel
  • Cushion: Polypropylene (Green)
Installation:

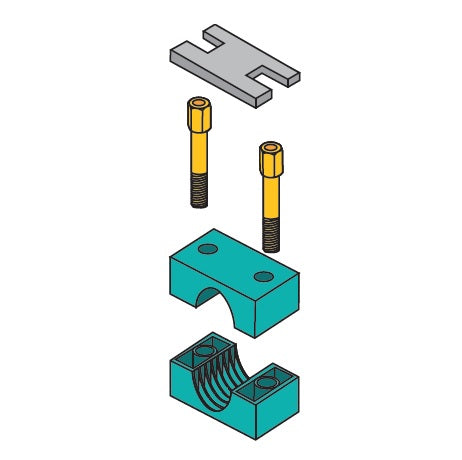

Assembly Includes:
Quantity Description
1 Each Safety Plate
2 Each Stacking Bolts
1 Set Cushions
Part Number Size Bolt Length
SM1006B 6mm 1-1/4"
SM1008B 8mm 1-1/4"
SM1012B 12mm 1-1/4"
SM2014B 14mm 1-3/8"
SM2015B 15mm 1-3/8"
SM2018B 18mm 1-3/8"
SM3020B 20mm 1-1/2"
SM3025B 25mm 1-1/2"
SM4030B 30mm 1-3/4"
SM5035B 35mm 2-1/2"

Additional Product Data:

Series:
  • Standard Series
Maximum Clamp I.D.:

14mm

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
