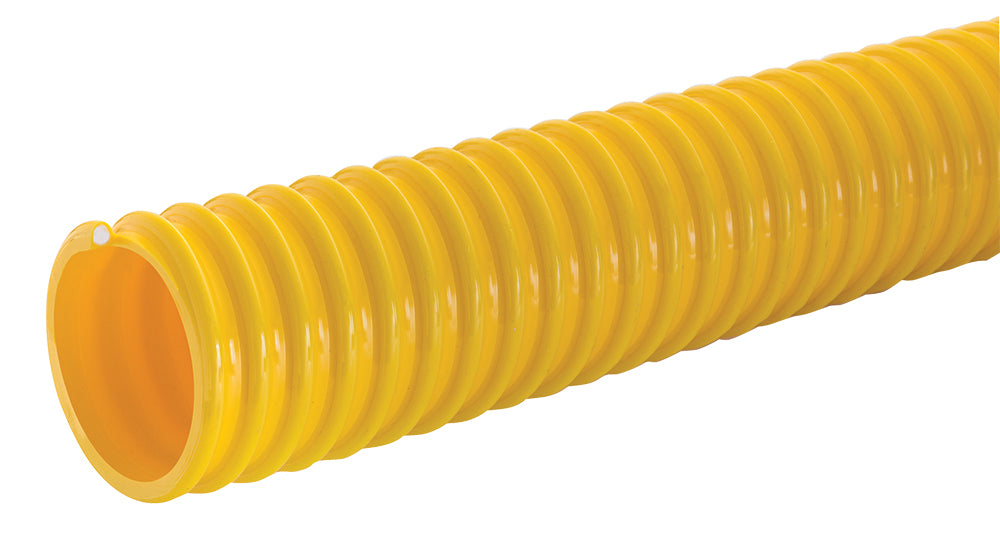

SLR600X100 Tigerflex® SOLARGUARD™ by Kuriyama | SLR™ Series | Liquid Suction Hose with High UV Resistance | PVC | 6" ID | 7.00" OD | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Heavy Duty Water Suction Hose
Tigerflex™ SOLARGUARD™ SLR Series
UV-resistant, safety yellow PVC suction hose for water, liquid fertilizer, irrigation, dewatering and trash pump applications.
Advanced UV Protection
Resists cracking from UV exposure
Safety Yellow
High visibility on site
Convoluted Cover
Increased hose flexibility
Made in the USA
Manufactured domestically
1
What is this product used for?
- Agricultural liquid fertilizer
- Air seeder lines
- Irrigation lines

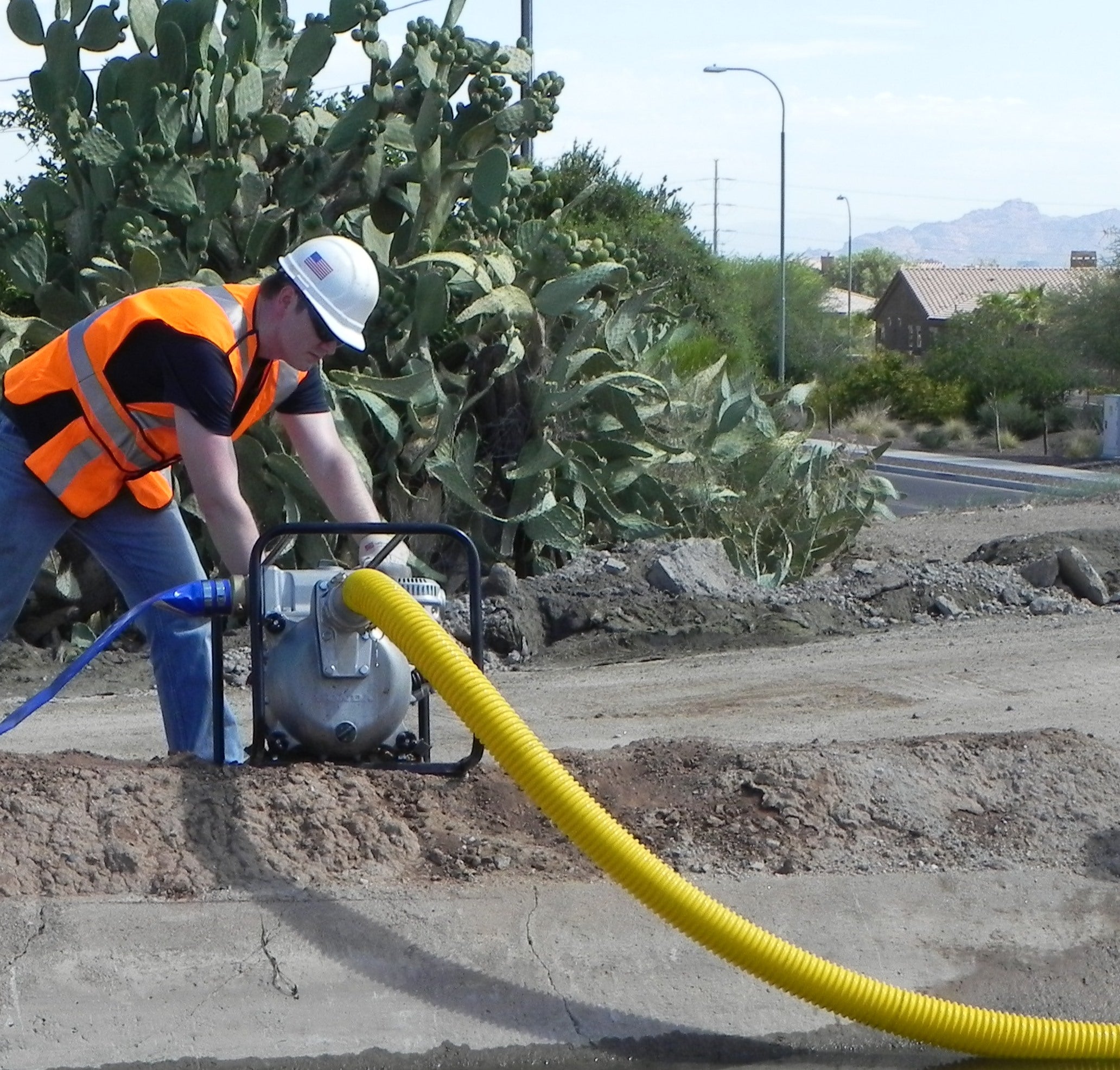

- Pumps — rental and construction dewatering
- Trash pumps
- Water suction — heavy duty
2
What are the key specifications?
Tube
Flexible PVC
Reinforcement
Rigid PVC helix
Service Temperature Range
-4°F (-20°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Compliance
Phthalate Free (10) — see the Kuriyama Tigerflex Hose Specifications Guide PDF
3
What are the main product features?
- Advanced UV Protection — The hose material is specially formulated to resist the cracking that can result from exposure to damaging UV light. Tests show the SOLARGUARD material retained 97% of its original tensile strength after prolonged UV exposure, compared to only 55% tensile strength retention for similar PVC hoses.*
- "Safety Yellow" Color — For high visibility on site. Reduces risk of tripping or driving over hose.
- Convoluted Outer Cover — Provides increased hose flexibility.
- Made in the USA — Manufactured domestically.
4
Which sizes or configurations are available?
| Part Number | ID | OD | Working Pressure (PSI) | Vacuum Rating (in Hg) | Min. Bending Radius | Length | Weight (lbs/ft) | ||
|---|---|---|---|---|---|---|---|---|---|
| at 68°F | at 104°F | at 68°F | at 104°F | ||||||
| SLR200X100 | 2" (50.8 mm) | 2.40" (61.0 mm) | 50 PSI | 30 PSI | Full | 28 in Hg | 3" | 100 ft | 0.52 |
| SLR250X100 | 2-1/2" (63.5 mm) | 2.99" (75.9 mm) | 45 PSI | 25 PSI | Full | 28 in Hg | 4" | 100 ft | 0.77 |
| SLR300X100 | 3" (76.2 mm) | 3.64" (92.5 mm) | 45 PSI | 25 PSI | Full | 28 in Hg | 6" | 100 ft | 1.18 |
| SLR400X100 | 4" (101.6 mm) | 4.76" (121.0 mm) | 35 PSI | 18 PSI | Full | 28 in Hg | 8" | 100 ft | 1.92 |
| SLR600X100 | 6" (152.4 mm) | 7.00" (177.8 mm) | 30 PSI | 15 PSI | 28 in Hg | 25 in Hg | 14" | 100 ft | 3.76 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide PDF
For more information on specification codes and hose details, consult the Kuriyama Tigerflex Hose Specifications Guide.
Note: Service life may vary depending on operating conditions and type of material being conveyed.
*UV test data: This information is based on independent third party test reports which are, to the best of our knowledge, complete and accurate. However, no warranty is expressed or implied, as specific application parameters such as temperature, stress and strain, and chemical exposure vary widely.
