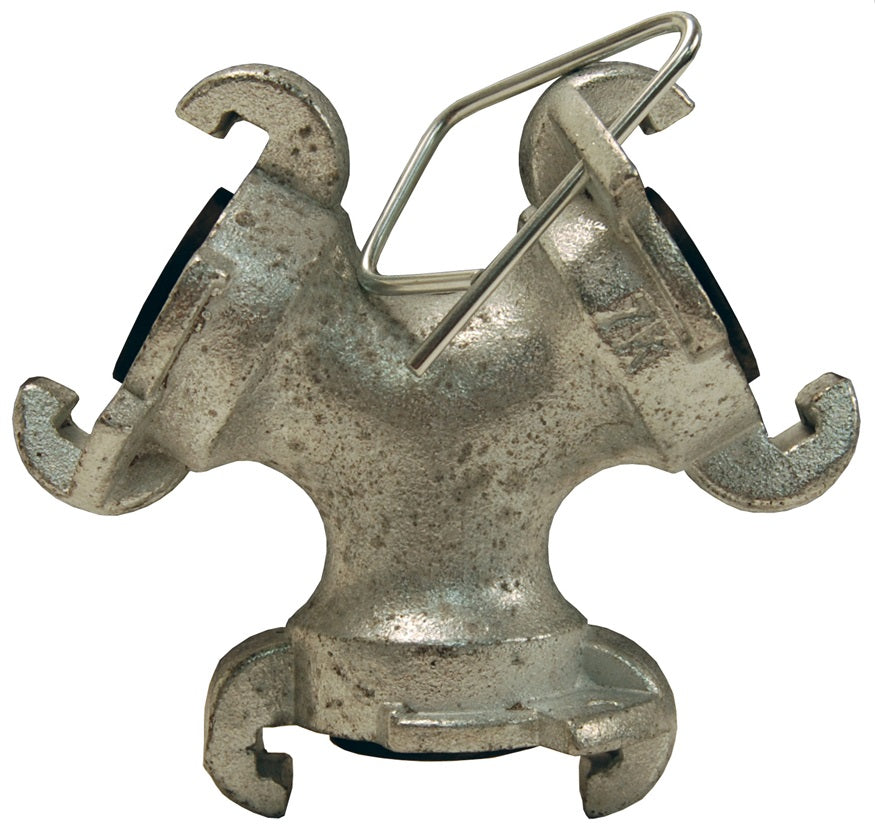

SL09 Sure-Lock® by Dixon Valve | Pneumatic Fitting | Three Way Connector | Small Head | Chicago Style | 1/2" to 1" Size | Iron

SL09 Sure-Lock® by Dixon Valve | Pneumatic Fitting | Three Way Connector | Small Head | Chicago Style | 1/2" to 1" Size | Iron

Sale price$35.91

Dixon Valve
Sure-Lock® Coupling | Three Way Connector | Chicago Style

Coupling for air only, commonly used in construction and mining; excels in services where ease, economy, safety, and speed are paramount.
Buy More, Save More!
Quantity Price Each
10–39 $33.76
40–79 $30.52
80+ $26.93
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Sure-Lock
Shape:

Y

Ends Configuration:
  • 2-Lug Chicago
  • 2-Lug Chicago
  • 2-Lug Chicago
  • Some Ends Match
Features:
  • Pressure-activated gasket allows for easy coupling (less than 15 lbs. of force is required to connect the coupling gaskets seal upon introduction of line pressure).
Construction:
  • Body: SG iron AS1831 400-250-12.
  • Bellows seal: natural rubber.
  • Safety pin is supplied with each coupling.
Specifications:
  • Working pressure: 200 PSI at ambient temperature 70°F (21°C)
Safety Notes:
  • Safety pin is supplied with each coupling and is required as a safety precaution.
  • Pressure rating is based on use with band clamps.
Part Number Head Size
SL09 Small 1/2" to 1"
SL10 Medium
(Medium blank end comes with 1" NPT pipe plug)		 1-1/2" to 2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
