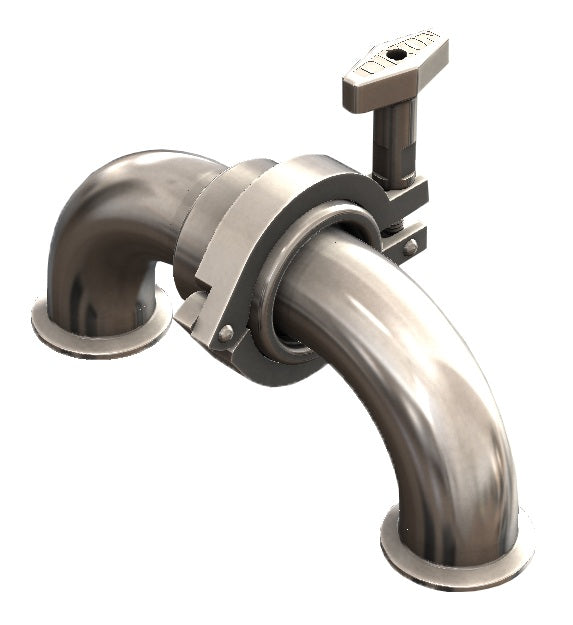

SJSS100SCC140 Dixon Valve SJSS Series Sanitary Swivel - 1" - Style 40 - Clamp Ends - Silicone - 316L Stainless Steel
Dixon

SJSS100SCC140 Dixon Valve SJSS Series Sanitary Swivel - 1" - Style 40 - Clamp Ends - Silicone - 316L Stainless Steel

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Construction:
  • 316L Stainless Steel
  • PTFE with Silicone seals
  • Sanitary finish ID and OD
Literature:
Part Number Size Pressure Rating Weight Repair Kit
Part Number
SJSS100SCC140 1" 500 PSI @ 70°F
300 PSI @ 250°F		 1.7780 SJSS-REPAR-S100
SJSS150SCC140 1-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 2.3365 SJSS-REPAR-S150
SJSS200SCC140 2" 500 PSI @ 70°F
300 PSI @ 250°F		 3.2846 SJSS-REPAR-S200
SJSS250SCC140 2-1/2" 500 PSI @ 70°F
300 PSI @ 250°F		 4.6766 SJSS-REPAR-S250
SJSS300SCC140 3" 500 PSI @ 70°F
300 PSI @ 250°F		 7.0138 SJSS-REPAR-S300
SJSS400SCC140 4" - - SJSS-REPAR-S400

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
