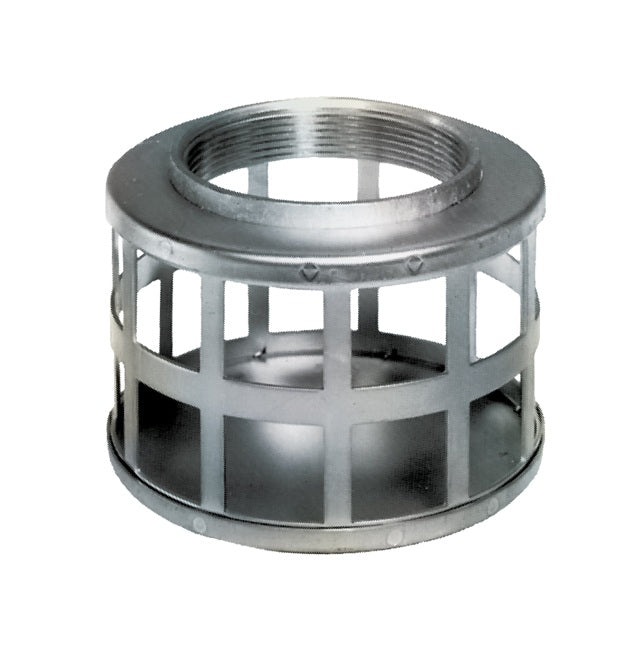

SHS800 by Kuriyama | SHS Series | Square Hole Strainer | 8" Size | Zinc Plated Steel

SHS800 by Kuriyama | SHS Series | Square Hole Strainer | 8" Size | Zinc Plated Steel

Sale price$175.60

Kuriyama of America Inc.
SHS Series | Square Hole Strainer | Zinc Plated Steel

Designed for use in suction hose applications to protect the pump from clogging.

NPSM threads connect with combination nipples used in hose assemblies.
Buy More, Save More!
Quantity Price Each
5–19 $165.06
20–59 $149.26
60+ $131.70
Discounts applied in cart/checkout.

What are the Features?

  • Designed for use in suction hose applications to protect the pump from clogging.
  • Zinc plated to help with rust and corrosion.
  • NPSM threads connect with combination nipples used in hose assemblies.

What are the Materials?

  • Zinc Plated Steel - AISI 1008
Part Number Size
(in)		 Hole Size
(in)		 Weight
Each
(lbs)
SHS150 1-1/2" 1.000" 1.12 lbs
SHS200 2" 1.000" 1.74 lbs
SHS300 3" 1.540" 2.50 lbs
SHS400 4" 1.540" 2.52 lbs
SHS600 6" 1.000" 6.32 lbs
SHS800 8" 1.000" 7.34 lbs
SHS1000 10" 1.000" 26.50 lbs

Product Data:

Series:
  • SHS Series
Material(s):
  • Zinc Plated Steel

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
