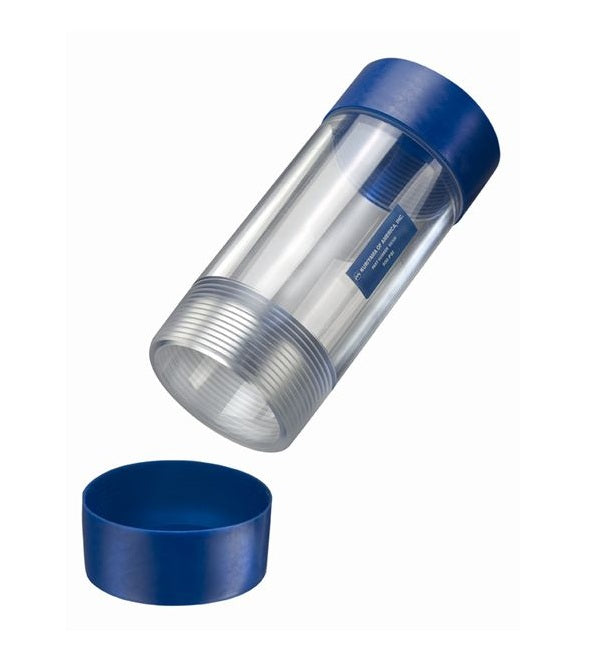

SG400 by Kuriyama | SG Series | Sight Glass | 4" Male NPT | Polycarbonate

SG400 by Kuriyama | SG Series | Sight Glass | 4" Male NPT | Polycarbonate

Sale price$141.79

Kuriyama of America Inc.
SG Series | Sight Glass | Male NPT Threads

Allows for viewing of material flowing through the glass at all times.

NPT threads allow for connection with an AL-D and AL-A camlocks.
Buy More, Save More!
Quantity Price Each
5–19 $133.28
20–59 $120.52
60+ $106.34
Discounts applied in cart/checkout.

What are the Features?

  • Allows for viewing of material flowing through the glass at all times.
  • Made of tough Polycarbonate material.
  • Supplied with protective caps to cover threads.
  • NPT threads allow for connection with an AL-D and AL-A camlocks.

What are the Materials?

  • Polycarbonate material: -50°F (-46°C) to +185°F (+85°C)
Part Number Size
(in)		 Length
(in)		 Wall Thickness
(in)		 PSI Rating
at 70°F
(PSI)		 Burst Rating
at 70°F
(PSI)		 Weight
Each
(lbs)
SG200 2" 8" 0.40" 500 PSI 2700 PSI 0.87 lbs
SG300 3" 8" 0.40" 500 PSI 1900 PSI 1.08 lbs
SG400 4" 8" 0.40" 500 PSI 1900 PSI 2.25 lbs

Product Data:

Series:
  • SG Series
MAWP:

500

Shape:

Straight
