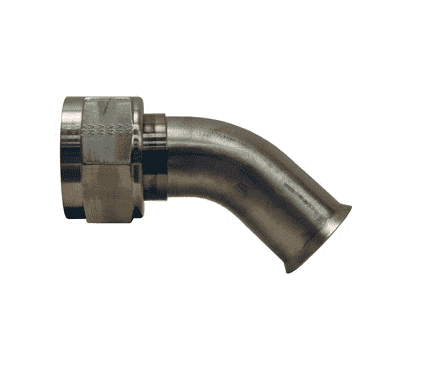

SFMF750-45 Dixon Valve 304 Stainless Steel 45 deg. Elbow Fem. Weld End Metal Hose Fitting (Nut & Sleeve) - 1-1/16" - 12 Fem. Threaded 37 deg. JIC x Weld End - 3/4" Tube OD
Buy more, save moreDiscounts applied in cart/checkout.
| Features: | |||
|---|---|---|---|
|
|||
| Dimensions: | |||
|
|
| Part Number | SAE 37 deg. Female | Tube OD | Pressure Rating PSI at 70 deg. F | Dimensions | Bend Radius | Gauge | Weight (Lbs.) | |
|---|---|---|---|---|---|---|---|---|
| A | B | |||||||
| SFMF250-45 | 7/16" - 20 | 1/4" | 5000 PSI | 0.750" | 0.750" | 0.380" | .049" | 0.0430 |
| SFMF375-45 | 9/16" - 18 | 3/8" | 4500 PSI | 1.000" | 1.000" | 0.500" | .049" | 0.0755 |
| SFMF500-45 | 3/4" - 16 | 1/2" | 4000 PSI | 1.250" | 1.250" | 1.000" | .049" | 0.1345 |
| SFMF750-45 | 1-1/16" - 12 | 3/4" | 2600 PSI | 1.450" | 1.450" | 1.500" | .049" | 0.2850 |
| SFMF1000-45 | 1-5/16" - 12 | 1" | 2500 PSI | 1.800" | 1.800" | 2.000" | .049" | 0.4300 |
| SFMF1250-45 | 1-5/8" - 12 | 1-1/4" | 2050 PSI | 2.100" | 2.100" | 2.000" | .065" | 0.9975 |
| SFMF1500-45 | 1-7/8" - 12 | 1-1/2" | 1700 PSI | 2.300" | 2.300" | 2.000" | .065" | 1.9000 |
| SFMF2000 | 2-1/2" - 12 | 2" | 1250 PSI | 3.000" | 3.000" | 3.000" | .065" | 1.9700 |
Additional Product Data:
Shape:
45 Degree
Material(s):
