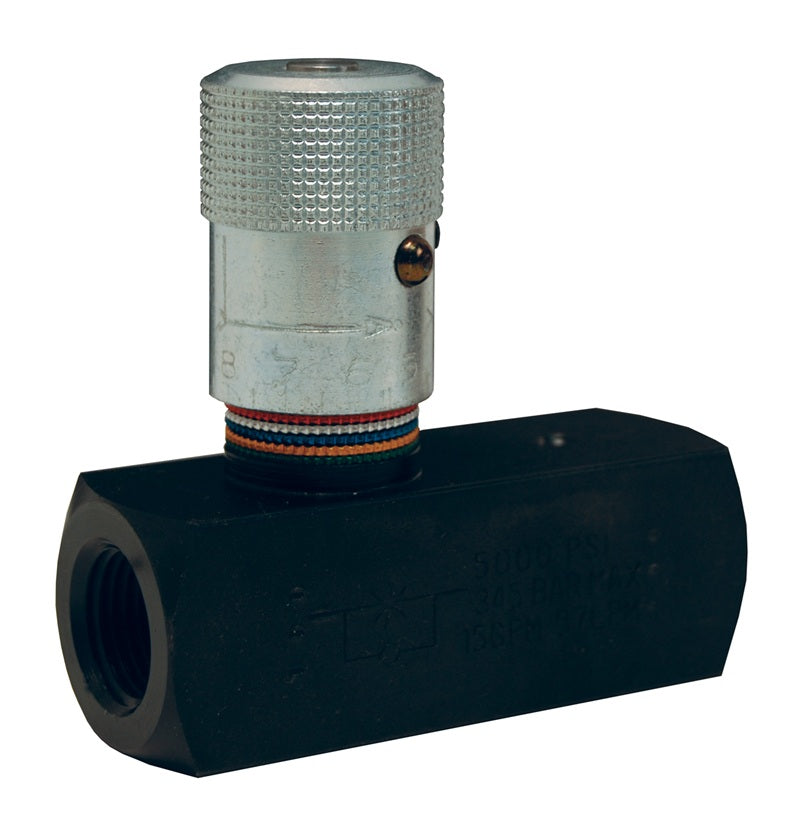

SFC2400 by Dixon Valve | Flow Control Valve | Series F | 1-1/2" Female NPT x 1-1/2" Female NPT | Black Oxide Steel

SFC2400 by Dixon Valve | Flow Control Valve | Series F | 1-1/2" Female NPT x 1-1/2" Female NPT | Black Oxide Steel

Sale price$2,058.41

Dixon Valve & Coupling
Flow Control Valve | Series F | Steel
Buy More, Save More!
Quantity Price Each
4–7 $1,934.91
8–14 $1,852.57
15+ $1,646.73
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/2in Female NPTF
  • 1-1/2in Female NPTF
  • Some Ends Match
Material(s):
  • Black Steel
Features:
  • Two-step needle provides fine adjustments at low flow with the first three turns of the adjusting knob.
  • The next three turns give full-open needle position and conventional throttling control.
  • When flow is reversed, the heavy-duty poppet/retainer permits full-flow return capacity.
  • Exclusive color-coded reference scale on the adjusting knob greatly simplifies flow setting, resetting, adjusting and return to an original flow.
  • A simple set screw locks the valve on any desired setting.
Materials:
  • Black Oxide Steel.
Specifications:
  • Maximum operating pressure:
    5000 PSI at 70°F (21°C) for 1/8" - 1/2"
    3000 PSI at 70°F (21°C) for 3/4" - 2"
Part Number Female NPTF x Female NPTF
SFC200 1/8"
SFC400 1/4"
SFC600 3/8"
SFC800 1/2"
SFC1200 3/4"
SFC1600 1"
SFC2400 1-1/2"
SFC3200 2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
