SDH-300X12 by Kuriyama | Series SDH | SIL-Duct Ducting Hose | Orange | ID: 3" | 45 PSI | Silicone | 12ft Length

SDH-300X12 by Kuriyama | Series SDH | SIL-Duct Ducting Hose | Orange | ID: 3" | 45 PSI | Silicone | 12ft Length

Sale price$275.96

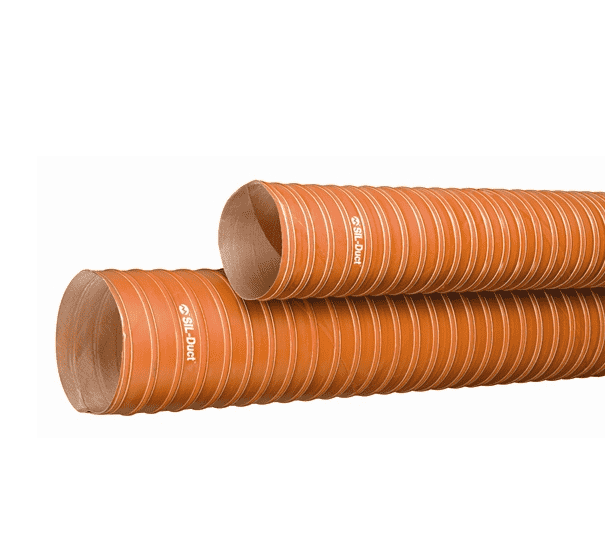

Kuriyama Ducting Hose - SIL-Duct® Silicone Ducting Hose Series SDH - Orange

Package Quantity: 12 FT

In stock
Buy More, Save More!
Quantity Price Each
5–14 $259.40
15–29 $234.57
30+ $206.97
Discounts applied in cart/checkout.

Product Data:

Brand:
  • FLEXAIR
  • SIL-Duct
Series:
  • SDH Series
Color(s):
  • Orange

SPECIFICATIONS

Application: Plastic processing dryers, Air handling applications Dust and fume control, Light material handling Note: Not recommended for liquids or abrasive materials. SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -80 deg. F (-62 deg. C) to 600 deg. F (+316 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Double continuous-filament, silicone-coated fiberglass cord for durability.
  • Designed for both high and low temperature extremes.
  • Suited for air handling applications at low positive and low negative pressures.
  • Resistant to many oils and solvents, ozone, water, fungus, and alkalis.
  • Superior air flow and minimum friction loss.
  • Lightweight, non-kinking and easy to install.
  • Standard packaging: 12' lengths in cartons.
Part Number Nominal ID Min. Bend. Radius Wall Thickness Max W.P. Burst Max Neg. Max Leakage CFM Cuff Length Weight Length/ CTN.
(in.) (mm) (in.) (in.) PSI PSI PSI (in.) (lbs/ft) (ft.)
SDH-100X12 1" 25.4mm 1" 0.07" 60 PSI 180 PSI 15 PSI 0.015 1-1/2" 0.125 lbs 12 ft
SDH-125X12 1-1/4" 31.7mm 1.3" 0.07" 60 PSI 180 PSI 15 PSI 0.015 1-1/2" 0.156 lbs 12 ft
SDH-150X12 1-1/2" 38.1mm 1.5" 0.07" 55 PSI 165 PSI 13 PSI 0.015 1-1/2" 0.188 lbs 12 ft
SDH-175X12 1-3/4" 44.5mm 1.8" 0.07" 55 PSI 165 PSI 13 PSI 0.020 1-1/2" 0.219 lbs 12 ft
SDH-200X12 2" 50.8mm 2" 0.07" 50 PSI 150 PSI 10 PSI 0.020 1-1/2" 0.250 lbs 12 ft
SDH-250X12 2-1/2" 63.5mm 2.5" 0.07" 45 PSI 135 PSI 8 PSI 0.025 1-1/2" 0.313 lbs 12 ft
SDH-300X12 3" 76.2mm 3" 0.07" 45 PSI 135 PSI 7 PSI 0.030 1-1/2" 0.388 lbs 12 ft
SDH-400X12 4" 101.6mm 4" 0.08" 40 PSI 120 PSI 5 PSI 0.040 1-1/2" 0.525 lbs 12 ft
SDH-500X12 5" 107.0mm 5" 0.08" 35 PSI 105 PSI 4 PSI 0.060 2" 0.669 lbs 12 ft
SDH-600X12 6" 152.4mm 6" 0.09" 30 PSI 90 PSI 3 PSI 0.100 2" 0.813 lbs 12 ft
SDH-800X12 8" 203.2mm 8" 0.11" 15 PSI 45 PSI 3 PSI 0.150 2" 1.113 lbs 12 ft
