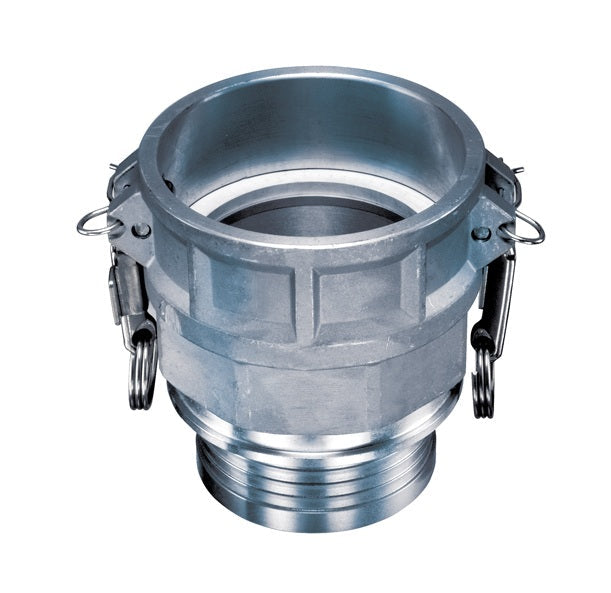

SCAL-C400 by Kuriyama | SCAL-C Series | Part C | Cam & Groove Swivel Adapter | 4" Coupler x 4" Hose Barb | Aluminum
Kuriyama of America Inc.
Cam & Groove (Camlock) Swivel Adapter | SCAL-C Series | Part C | Coupler x Hose Barb | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $144.66 |
| 20–59 | $130.81 |
| 60+ | $115.42 |
Discounts applied in cart/checkout.
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design to withstand rigorous applications found in industrial markets.
- Nitrile gasket helps prevent product contamination.
- SCAL-C series supplied with forged brass handles which results in less wear on connecting parts.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability.
- 304 stainless steel handle pins, pull rings, and safety clips.
- Buna-N gasket included.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|
| SCAL-C400 | 4" | 72 PSI | B26 Grade 713 | 5.50 lbs |
Product Data:
Series:
MAWP:
72
Shape:
Straight
Cam & Groove Type:
Type C
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
