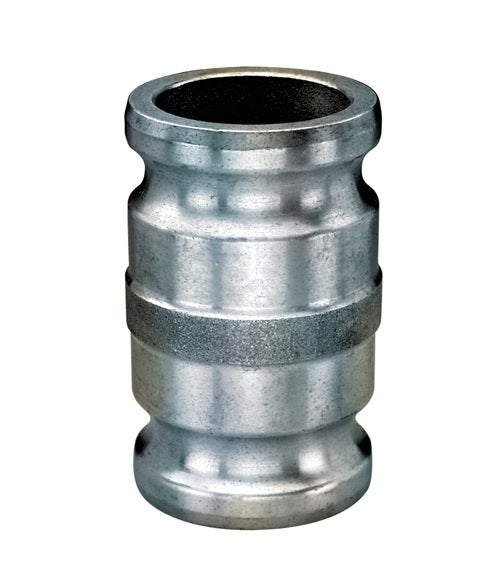

SA-A200 by Kuriyama | SA-A Series | Part AA | Cam & Groove Spool Adapter | 2" Adapter x 2" Adapter | Aluminum
Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Part A - Reducing Coupler x Adapter - Aluminum
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $24.30 |
| 40–79 | $21.97 |
| 80+ | $19.39 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Cam & Groove Type:
Type AA (Spool Adapter)
Ends Configuration:
Material(s):
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous. applications found in industrial markets.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability.
| Part Number | Male Coupler Size (in) |
Male Coupler Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|---|
| SA-A150 | 1-1/2" | 1-1/2" | 250 PSI | B108-92 356 | 0.43 lbs |
| SA-A1520 | 1-1/2" | 2" | 250 PSI | B108-92 356 | 0.55 lbs |
| SA-A200 | 2" | 2" | 250 PSI | B108-92 356 | 0.68 lbs |
| SA-A2030 | 2" | 3" | 150 PSI | B108-92 356 | 0.97 lbs |
| SA-A300 | 3" | 3" | 150 PSI | B108-92 356 | 1.10 lbs |
| SA-A3040 | 3" | 4" | 150 PSI | B108-92 356 | 1.78 lbs |
| SA-A400 | 4" | 4" | 150 PSI | B108-92 356 | 1.91 lbs |
| SA-A4060 | 4" | 6" | 75 PSI | B26 Grade 713 | 3.64 lbs |
| SA-A600 | 6" | 6" | 75 PSI | B26 Grade 713 | 3.48 lbs |
