S5020R-AL by ZSi-Foster | C-Rail Mount Beta Clamp | Standard Series | For 1-1/4" Tube | Aluminum

S5020R-AL by ZSi-Foster | C-Rail Mount Beta Clamp | Standard Series | For 1-1/4" Tube | Aluminum

Sale price$22.39
Buy more, save moreDiscounts applied in cart/checkout.
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Cushion: Aluminum
  • Components: Steel
Installation:

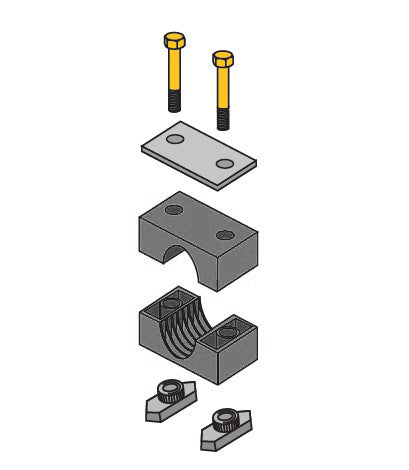

Assembly Includes:
Quantity Description
2 Each Hex Bolts
1 Each Cover Plate
1 Set Cushions
2 Each C-Rail Nuts
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Bolt Length
S1004R-AL - 1/4" 1-1/4"
S1006R-AL S2011R-AL 3/8" Tube: 1-1/4"
Pipe: 1-3/8"
S2008R-AL S3014R-AL 1/2" Tube: 1-3/8"
Pipe: 1-1/2"
S2010R-AL - 5/8" 1-3/8"
S3012R-AL S4017R-AL 3/4" Tube: 1-1/2"
Pipe: 1-3/4"
S3015R-AL - 7/8" 1-1/2"
S3016R-AL S5021R-AL 1" Tube: 1-1/2"
Pipe: 2-1/2"
S5020R-AL S5027R-AL 1-1/4" 2-1/2"
S5024R-AL S6030R-AL 1-1/2" Tube: 2-1/2"
Pipe: 2-3/4"
S6028R-AL - 1-3/4" 2-3/4"
- S7038R-AL 2" 4"

Additional Product Data:

Series:
  • Standard Series
Maximum Clamp I.D.:

1.25"
