S2010R-SS by ZSi-Foster | C-Rail Mount Beta Clamp | Standard Series | For 5/8" Tube | Polypropylene/304 Stainless Steel

S2010R-SS by ZSi-Foster | C-Rail Mount Beta Clamp | Standard Series | For 5/8" Tube | Polypropylene/304 Stainless Steel

Sale price$24.61

ZSI-Foster
Beta Hydraulic Clamps - Standard Series - C-Rail Mount - 304 Stainless Steel

- Cushions are Polypropylene (Green Color).

- Recommended for systems with less than 1,500 psi (103 bar) without dynamic loads.

- Use for standard hydraulics, general pipe construction, electrical cables, and general duty piping applications subject to moderate levels of shock and vibration.
Buy More, Save More!
Quantity Price Each
10–39 $23.13
40–79 $20.92
80+ $18.46
Discounts applied in cart/checkout.

Product Data:

Series:
  • Standard Series
Maximum Clamp I.D.:

0.625"
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
Materials:
  • Components: 304 Stainless Steel
  • Cushion: Polypropylene (Green)
Installation:

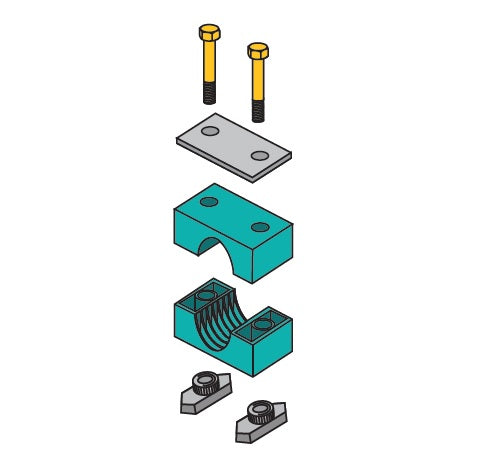

Assembly Includes:
Quantity Description
2 Each Hex Screws
1 Each Cover Plate
1 Set Cushions
2 Each C-Rail Nuts
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Bolt Length
S1004R-SS S2009R-SS 1/4" Tube: 1-1/4"
Pipe: 1-3/8"
S1006R-SS - 3/8" 1-1/4"
S2008R-SS - 1/2" 1-3/8"
S2010R-SS - 5/8" 1-3/8"
S3012R-SS S4017R-SS 3/4" Tube: 1-1/2"
Pipe: 1-3/4"
S3016R-SS S5021R-SS 1" Tube: 1-1/2"
Pipe: 2-1/2"
S4018R-SS - 1-1/8" 1-3/4"
S5020R-SS S5027R-SS 1-1/4" 2-1/2"
S5024R-SS S6030R-SS 1-1/2" Tube: 2-1/2"
Pipe: 2-3/4"
S6032R-SS - 2" Tube: 2-3/4"
Pipe: 4"

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
