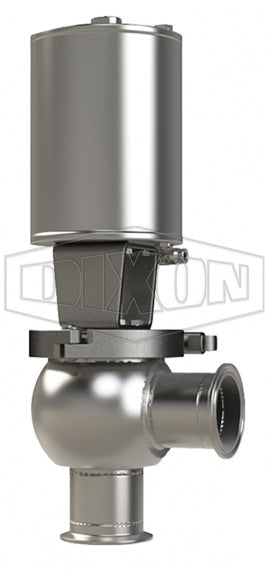

S01A15C2EE Dixon Valve 1-1/2" SSV Series Single Seat Valve, Shut-Off L Body, Clamp, Spring Return Actuator (Air-To-Lower) - Elastomer O-Ring Stem Seal - EPDM Wetted Elastomer
Buy more, save moreDiscounts applied in cart/checkout.
| Features: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
|||
| Specifications: | |||
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | |||||||||||
| Valve Size | A | A1 | Stroke | B | C (Clamp) | C (Weld) | C2 (Clamp) | C2 (Weld) | D | E (Clamp) | E (Weld) |
| 1" | 7.58" | 5.80" | 0.41" | 2.23" | 2.50" | 2" | 3.20" | 2" | 2.78" | 4.78" | 3.78" |
| 1.5" | 8.80" | 6.10" | 0.77" | 3.15" | 2.75" | 2.25" | - | - | 4.11" | 6.60" | 5.60" |
| 2" | 9.05" | 6.28" | 0.77" | 3.64" | 3.50" | 3" | - | - | 4.11" | 7.64" | 6.64" |
| 2.5" | 11.36" | 6.52" | 1.04" | 4.72" | 3.50" | 3" | - | - | 6.08" | 9.33" | 8.33" |
| 3" | 11.61" | 6.78" | 1.04" | 5.04" | 3.75" | 3.25" | - | - | 6.08" | 10.63" | 9.63" |
| 4" | 12.10" | 7.25" | 1.04" | 5.94" | 4.50" | 3.87" | - | - | 6.08" | 13.18" | 11.93" |
| Part Number | Size | Actuator Type | Stem Type | Wetted Elastomers | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S01A15C1EE | 1-1/2" | Spring Return Actuator (Air-To-Raise) | Elastomer O-Ring Stem Seal | EPDM Wetted Elastomer | ||||||||
| S01A15C2EE | 1-1/2" | Spring Return Actuator (Air-To-Lower) | Elastomer O-Ring Stem Seal | EPDM Wetted Elastomer | ||||||||
| S01A15C3EE | 1-1/2" | Double Acting Actuator (Air-To-Air) | Elastomer O-Ring Stem Seal | EPDM Wetted Elastomer | ||||||||
| S01A15C1EV | 1-1/2" | Spring Return Actuator (Air-To-Raise) | Elastomer O-Ring Stem Seal | FKM Wetted Elastomer | ||||||||
| S01A15C2EV | 1-1/2" | Spring Return Actuator (Air-To-Lower) | Elastomer O-Ring Stem Seal | FKM Wetted Elastomer | ||||||||
| S01A15C3EV | 1-1/2" | Double Acting Actuator (Air-To-Air) | Elastomer O-Ring Stem Seal | FKM Wetted Elastomer | ||||||||
| S01A15C1PE | 1-1/2" | Spring Return Actuator (Air-To-Raise) | PTFE Plug Seal | EPDM Wetted Elastomer | ||||||||
| S01A15C2PE | 1-1/2" | Spring Return Actuator (Air-To-Lower) | PTFE Plug Seal | EPDM Wetted Elastomer | ||||||||
| S01A15C3PE | 1-1/2" | Double Acting Actuator (Air-To-Air) | PTFE Plug Seal | EPDM Wetted Elastomer | ||||||||
| S01A15C1PV | 1-1/2" | Spring Return Actuator (Air-To-Raise) | PTFE Plug Seal | FKM Wetted Elastomer | ||||||||
| S01A15C2PV | 1-1/2" | Spring Return Actuator (Air-To-Lower) | PTFE Plug Seal | FKM Wetted Elastomer | ||||||||
| S01A15C3PV | 1-1/2" | Double Acting Actuator (Air-To-Air) | PTFE Plug Seal | FKM Wetted Elastomer | ||||||||
| S01A15C1PEG | 1-1/2" | Spring Return Actuator (Air-To-Raise) Burkert 8691, Single Acting, 24VDC, Multipin |
PTFE Plug Seal | EPDM Wetted Elastomer | ||||||||
Additional Product Data:
Shape:
90 Degree
Material(s):
Seal Material(s):
