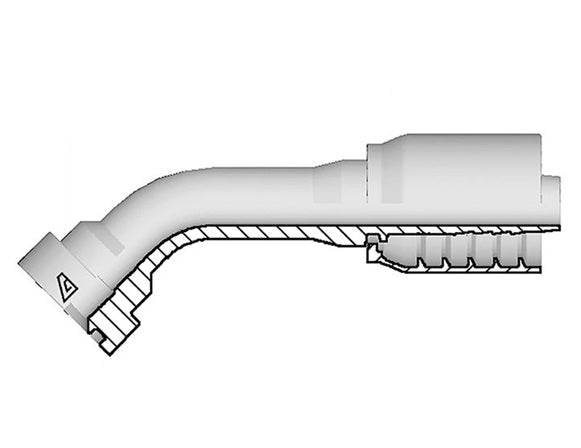

S-2024-CFL7 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 67.5° Elbow | -20 CAT Flange x -24 Hose ID | Steel

S-2024-CFL7 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 67.5° Elbow | -24 CAT Flange x -20 Hose ID | Steel

Sale price$305.58

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 67.5° Elbow | CAT Flange x Hose Barb
Buy More, Save More!
Quantity Price Each
5–14 $287.25
15–29 $259.74
30+ $229.19
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • S Series
Shape:

67.5 Degree
Part Number Hose ID Size Q Flange C Cut-Off
Factor		 T
Thickness		 D
Drop		 Flange
Dash Size		 Weight
Dash
Size		 in mm in mm mm mm mm lbs/each
S-1212-CFL7 -12 3/4" 19.0mm 1.63" 41.3mm 86.1mm 14.3mm 51.8mm -12 1.12 lbs
S-1216-CFL7 -12 3/4" 19.0mm 1.88" 47.6mm 88.8mm 14.3mm 54.6mm -16 1.38 lbs
S-1616-CFL7 -16 1" 25.4mm 1.88" 47.6mm 111.0mm 14.3mm 67.0mm -16 2.13 lbs
S-1620-CFL7 -16 1" 25.4mm 2.13" 54.0mm 109.0mm 14.3mm 64.0mm -20 2.21 lbs
S-2020-CFL7 -20 1-1/4" 31.8mm 2.13" 54.0mm 119.3mm 14.3mm 70.6mm -20 3.57 lbs
S-2024-CFL7 -20 1-1/4" 31.8mm 2.50" 63.5mm 132.0mm 14.3mm 77.0mm -24 3.65 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
