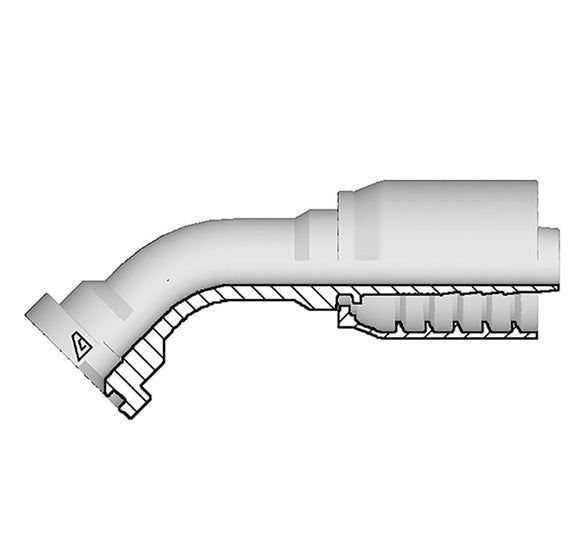

S-2020-C613 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 30° Elbow | -20 Code 61 Flange x -20 Hose ID | Steel
Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 30° Elbow | Code 61 Flange x Hose Barb
SAE J518
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $127.07 |
| 20–59 | $114.90 |
| 60+ | $101.39 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
30 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Hose ID Size | Q Flange | C Cut-Off Factor |
D Drop Factor |
Flange Dash Size |
Weight | |||
| Dash Size |
in | mm | in | mm | mm | mm | lbs/each | ||
| S-1212-C613 | -12 | 3/4" | 19.0mm | 1.50" | 38.1mm | 71.0mm | 28.0mm | -12 | 0.87 lbs |
| S-1616-C613 | -16 | 1" | 25.4mm | 1.75" | 44.5mm | 88.0mm | 25.0mm | -16 | 1.35 lbs |
| S-2020-C613 | -20 | 1-1/4" | 31.8mm | 2.00" | 50.8mm | 94.3mm | 38.5mm | -20 | 1.99 lbs |
