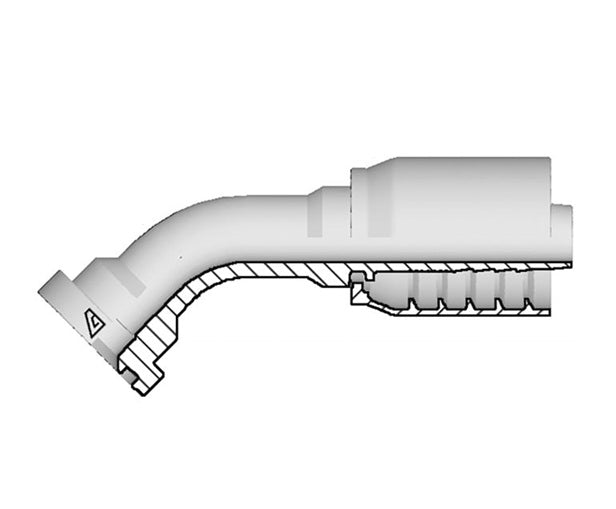

S-1616-C623 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 30° Elbow | -16 Code 62 Flange x -16 Hose ID | 6000 PSI | Steel

S-1616-C623 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 30° Elbow | -16 Code 62 Flange x -16 Hose ID | 6000 PSI | Steel

Sale price$82.19

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 30° Elbow | Code 62 Flange x Hose Barb

- SAE J518

- 6000 PSI
Buy More, Save More!
Quantity Price Each
5–19 $77.26
20–59 $69.86
60+ $61.64
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfabiotech Evolution
Series:
  • S Series
Shape:

30 Degree
Part Number Hose ID Size Q Flange C Cut-Off
Factor		 Flange Dash
Size		 Weight
Dash
Size		 in mm in mm mm lbs/each
S-1616-C623 -16 1" 25.4mm 1.88" 47.6mm - -16 1.52 lbs
S-2020-C623 -20 1-1/4" 31.8mm 2.13" 54.0mm - -20 2.18 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
