S-10 Everflex by Danfoss | S-Series | Smooth Bore Non-Dissipating Teflon™ Hose | 0.50" Hose ID | 0.68 Hose OD | 304 Stainless Steel Braid
Everflex by Danfoss
S Series | Smooth Bore Non-Dissipating Teflon (PTFE) Hose

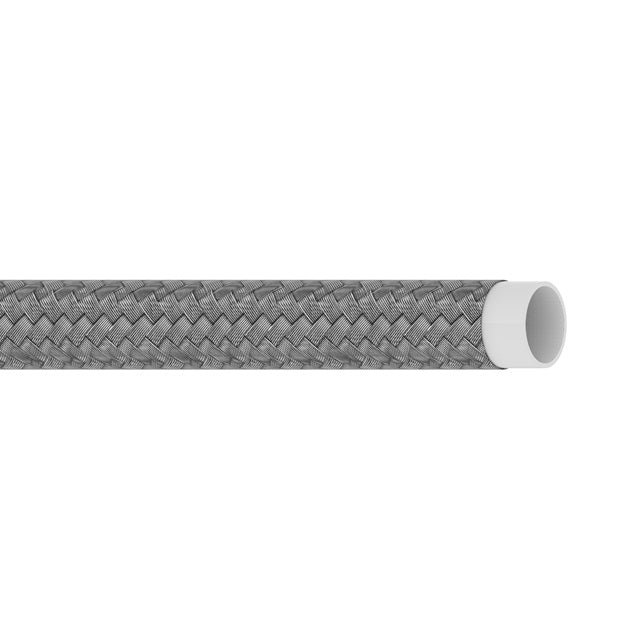

Everflex S-Series tube is reinforced with stainless steel wire. All sizes are made from virgin Teflon™ fluoropolymer and have a minimum wall thickness of .040". That is 33% more material than most other manufacturers offer. The additional material results in improved bend radius, kink resistance, and slows permeation of gases. The minimum bend radius is measured in inches to the inside bend. Multiply the bend radius by 1.25 for dynamic applications.
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $14.18 |
| 40–79 | $12.83 |
| 80+ | $11.32 |
Product Data:
1750
| Hose Properties: | |||
|---|---|---|---|
| Applications: | Steam Compressor Discharge Chemical Transfer 316 Stainless braided hose can be used in marine applications and other environments where corrosion is an issue |
SAE Ratings: | N/A |
| Other Ratings: | N/A | Tube: | Non-Conductive Teflon Inner Tube |
| Reinforcement: | N/A | Cover: | 304 or 316 Stainless Steel Braid |
| Operating Parameters: | -65°F to +450°F (-54°C to +230°C) | ||
| Part Number | Hose ID | Hose OD | Working Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | Vacuum Service | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | in. Hg | ||
| S-3 | 3,2mm | 0.13" | 6,8mm | 0.27" | 241 bar | 3,500 Psi | 965 bar | 14,000 Psi | 25,4mm | 1.00" | 0,07 kg/m | 0.05 lbs/ft | 28 In/Hg | |
| S-4 | 4,8mm | 0.19" | 8,6mm | 0.34" | 206 bar | 3,000 Psi | 827 bar | 12,000 Psi | 38,1mm | 1.50" | 0,12 kg/m | 0.08 lbs/ft | 28 In/Hg | |
| S-5 | 6,4mm | 0.25" | 10,2mm | 0.40" | 206 bar | 3,000 Psi | 827 bar | 12,000 Psi | 50,8mm | 2.00" | 0,13 kg/m | 0.09 lbs/ft | 28 In/Hg | |
| S-6 | 7,9mm | 0.31" | 11,7mm | 0.46" | 172 bar | 2,500 Psi | 689 bar | 10,000 Psi | 88,9mm | 3.50" | 0,18 kg/m | 0.12 lbs/ft | 28 In/Hg ‡ | |
| S-8 | 10,4mm | 0.41" | 14,7mm | 0.58" | 137 bar | 2,000 Psi | 551 bar | 8,000 Psi | 114,3mm | 4.50" | 0,22 kg/m | 0.15 lbs/ft | 28 In/Hg ‡ | |
| S-10* | 12,7mm | 0.50" | 17,3mm | 0.68" | 120 bar | 1,750 Psi | 482 bar | 7,000 Psi | 127,0mm | 5.00" | 0,30 kg/m | 0.20 lbs/ft | 28 In/Hg ‡ | |
| S-12* | 15,7mm | 0.62" | 20,3mm | 0.80" | 103 bar | 1,500 Psi | 413 bar | 6,000 Psi | 152,4mm | 6.00" | 0,34 kg/m | 0.23 lbs/ft | 28 In/Hg ‡ | |
| S-16 | 22,4mm | 0.88" | 27,2mm | 1.07" | 68 bar | 1,000 Psi | 275 bar | 4,000 Psi | 228,6mm | 9.00" | 0,46 kg/m | 0.31 lbs/ft | 12 In/Hg ‡ | |
| S-16Z** | 22,4mm | 0.88" | 28,7mm | 1.13" | 86 bar | 1,250 Psi | 344 bar | 5,000 Psi | 185,4mm | 7.30" | 0,73 kg/m | 0.49 lbs/ft | 12 In/Hg ‡ | |
| S-20Z** | 28,4mm | 1.12" | 35,3mm | 1.39" | 68 bar | 1,000 Psi | 275 bar | 4,000 Psi | 279,4mm | 11.00" | 0,97 kg/m | 0.65 lbs/ft | 12 In/Hg ‡ | |
| S316-4 | 4,8mm | 0.19" | 8,6mm | 0.34" | 206 bar | 3,000 Psi | 827 bar | 12,000 Psi | 38,1mm | 1.50" | 0,12 kg/m | 0.08 lbs/ft | 28 In/Hg | |
| S316-6 | 7,9mm | 0.31" | 11,7mm | 0.46" | 172 bar | 2,500 Psi | 689 bar | 10,000 Psi | 88,9mm | 3.50" | 0,18 kg/m | 0.12 lbs/ft | 28 In/Hg ‡ | |
| S316-8 | 10,4mm | 0.41" | 14,7mm | 0.58" | 103 bar | 1,500 Psi | 414 bar | 6,000 Psi | 114,3mm | 4.50" | 0,22 kg/m | 0.15 lbs/ft | 28 In/Hg ‡ | |
| S316-12 | 15,7mm | 0.62" | 20,1mm | 0.78" | 86 bar | 1,250 Psi | 345 bar | 5,000 Psi | 152,4mm | 6.00" | 0,34 kg/m | 0.23 lbs/ft | 28 In/Hg ‡ | |
| S316-16 | 22,4mm | 0.88" | 27,2mm | 1.07" | 62 bar | 900 Psi | 248 bar | 3,600 Psi | 228,6mm | 9.00" | 0,46 kg/m | 0.31 lbs/ft | 12 In/Hg ‡ | |
Warning: These hoses can be used to convey hazardous chemicals, steam, hot liquids or other dangerous materials which can cause death, serious bodily injury including burns, pressure wounds or chemical exposure if released accidentally. They should, therefore, only be handled or worked on by personnel properly trained in the safe handling of the materials or chemicals conveyed in the hoses.
** "Z" Designates a double braid of 304 stainless steel wire.
* The operating pressure of 1/2" I.D. hoses are lowered to 1500 psi and 5/8h I.D. hoses are lowered to 1250 psi when Brass Everswage fittings are used.
‡ Maximum negative pressure for -16 and larger are suitable for hose which has suffered no external damage or kinking. If greater negative pressures are required for -16 and larger hoses, the use of an internal support coil is recommended. Use of an internal support coil in -06 and larger hose is recommended for tube support where extended or continuous service at high temperature together with low or negative pressure is expected.
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
