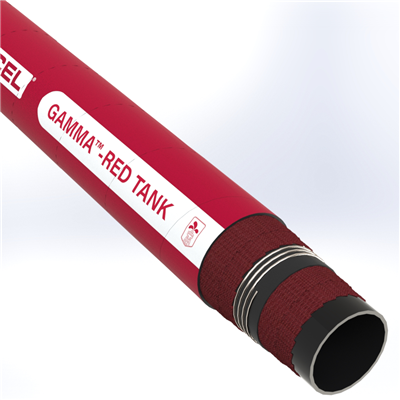

RTA15S1-2.0-200 by Texcel | GAMMA™-RED TANK Series | Tank Truck Hose | 2" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Red
Texcel
RED TANK Series | Red Tank Truck Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $19.87 |
| 40–79 | $17.97 |
| 80+ | $15.86 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | The industry standard for tank truck, in-plant and oilfield loading operations requiring a strong yet flexible hose. Red cover for easy identification. | Tube: | Black, Nitrile, 55% aromatics (ORS) |
| Cover: | Red, Neoprene (smooth) | Reinforcement: | High tensile tire cord plies; dual helix wire |
| Safety Factor: | 4:1 | Temperature: | -40°F to +180°F |
| Branding: | TEXCEL® GAMMA™-RED TANK - RED TANK TRUCK HOSE 150 PSI W.P. | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| RTA15S1-2.0-200 | 2" | 2-29/64" | 150 psi | 29 | 8" | 1.10 lbs |
| RTA15S1-3.0-200 | 3" | 3-32/64" | 150 psi | 29 | 13" | 1.79 lbs |
| RTA15S1-4.0-200 | 4" | 4-36/64" | 150 psi | 29 | 19" | 2.64 lbs |
