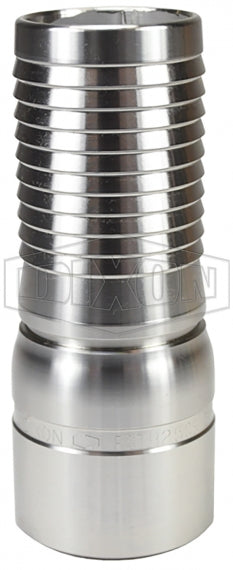

RSTB30CS by Dixon Valve | King Crimp® | Combination Nipple | Beveled End | 2-1/2" Hose ID | 316 Stainless Steel

RSTB30CS by Dixon Valve | King Crimp® | Combination Nipple | Beveled End | 2-1/2" Hose ID | 316 Stainless Steel

Sale price$141.80

Dixon Valve & Coupling
King Crimp® Style | Combination Nipple | Beveled End
Buy More, Save More!
Quantity Price Each
5–19 $133.29
20–59 $120.53
60+ $106.35
Discounts applied in cart/checkout.

Product Data:

Brand:
  • King Crimp®
Shape:

Straight

Ends Configuration:
  • 2-1/2in Beveled End
  • 2-1/2in Hose Barb
About:
  • There are two grooves on the crimp style King Combination nipples. The second groove is the roll stamp groove which has the part number and 'call Dixon' stamped on it. This groove is a smooth concentric groove so that the stamp can be legible.
Safety Notes:
  • For use with King Crimp style sleeves and ferrules.
  • Only use the crimp style shanks with the crimp style sleeves and ferrules.
  • Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.
Schedule 80
Plated Carbon Steel
Part Number		 316 Stainless Steel
Part Number		 Hose ID
STB10CS RSTB10CS 1"
STB20CS RSTB20CS 1-1/2"
STB25CS RSTB25CS 2"
- RSTB30CS 2-1/2"
STB35CS RSTB35CS 3"
STB40CS RSTB40CS 4"
STB60CS RSTB60CS 6"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
